Components
220 parametric three.js components for offshore and onshore oil & gas plants. Each one is a single file sized from the standard it follows, with ports for wiring pipe.
Showing 220 of 220
Piping & fittings31
ASME B36.10 pipe, B16.9 fittings, B16.5 flanges, supports and specialty items.

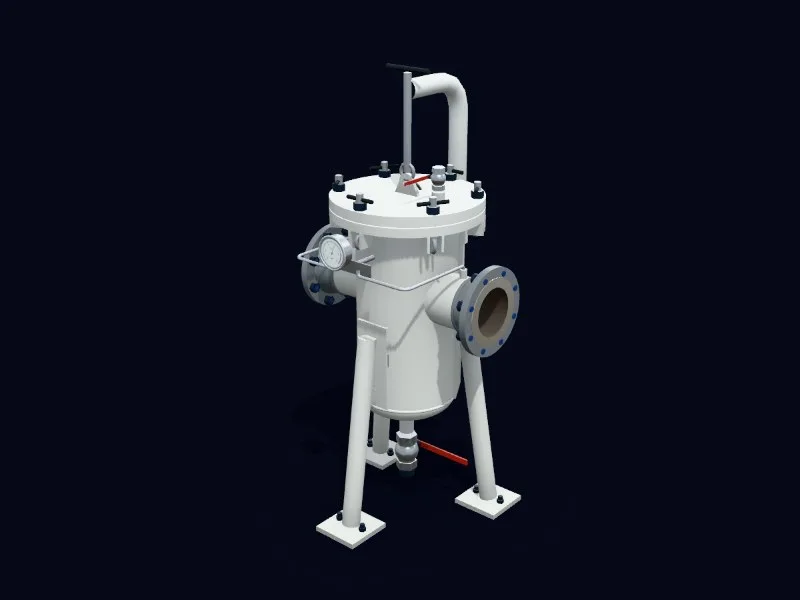

Basket strainer
ASME BPVC VIII-1, ASME B16.5

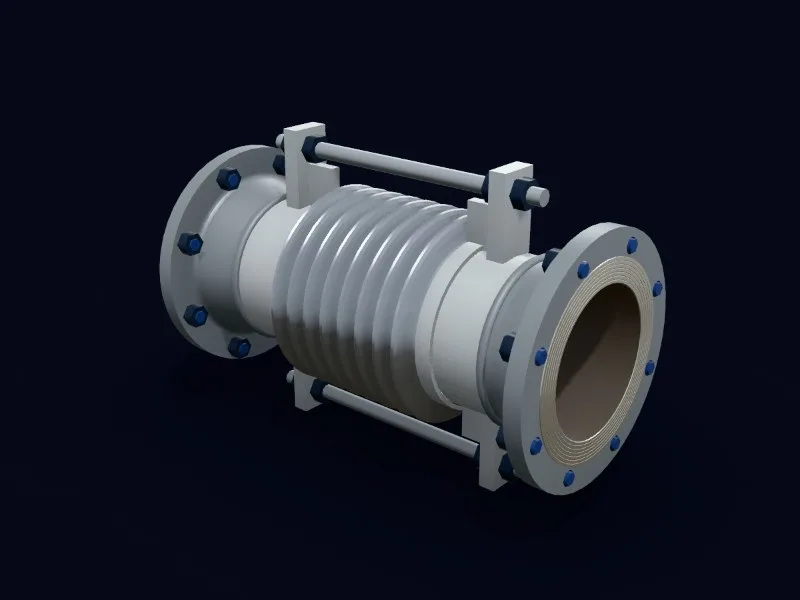

Bellows expansion joint
EJMA 10th ed. (typical), ASME B31.3 Appendix X

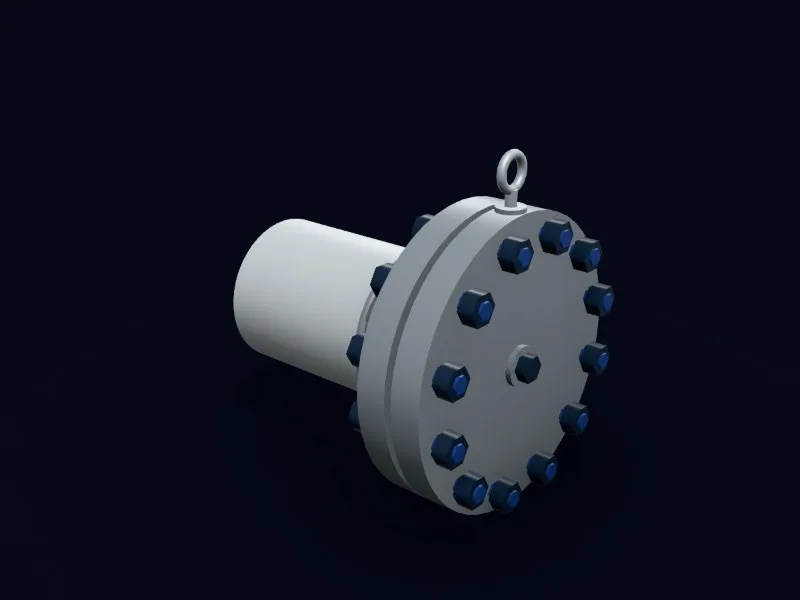

Blind flange
ASME B16.5, ASME B16.47

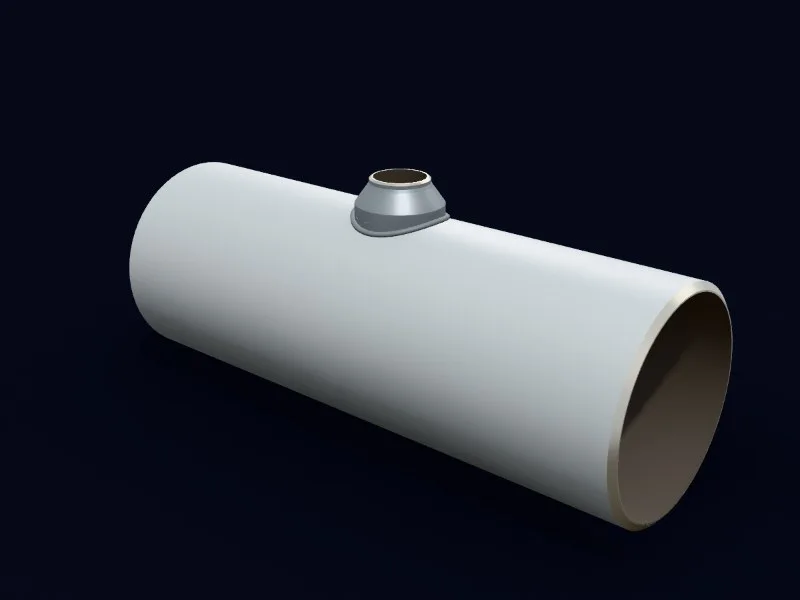

Branch outlet (olet)
MSS SP-97, ASME B16.11

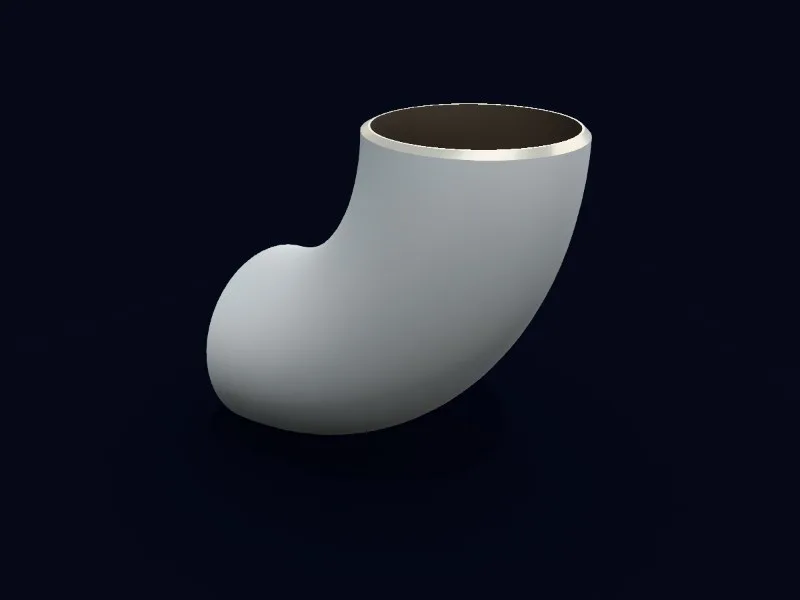

Elbow
ASME B16.9, ASME B16.25

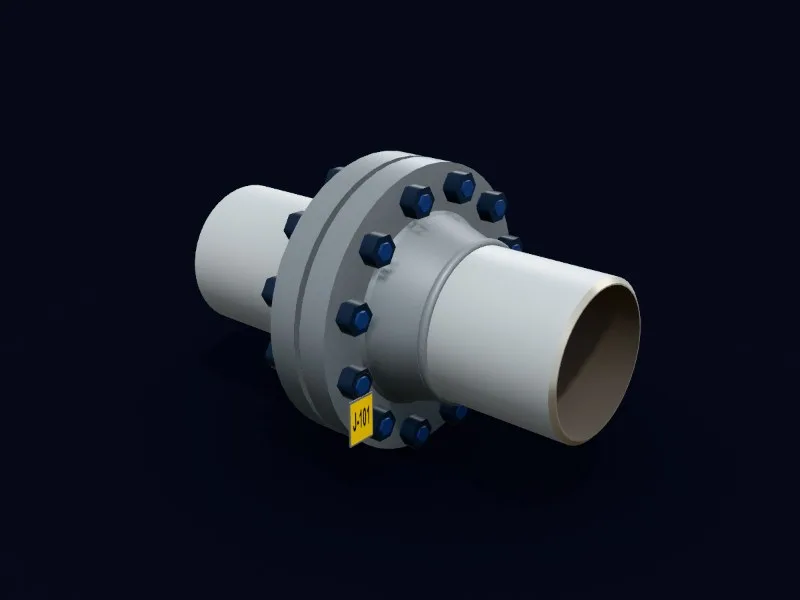

Flanged joint
ASME B16.5, ASME B16.47

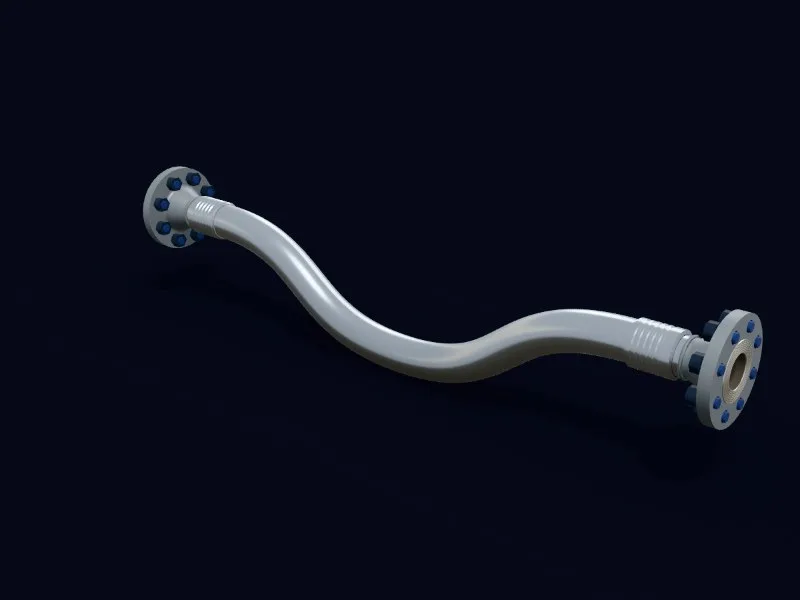

Flexible hose assembly
ISO 10380, EN 14585-1

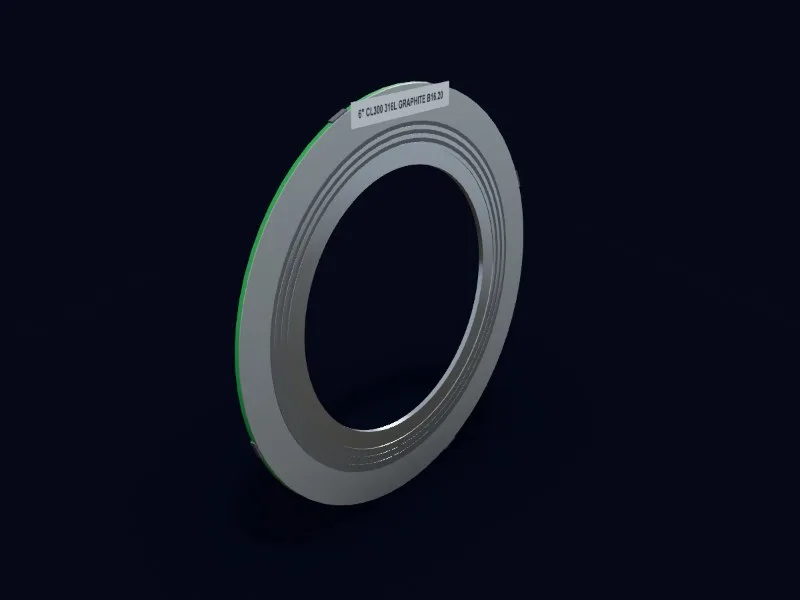

Gasket
ASME B16.20, ASME B16.21

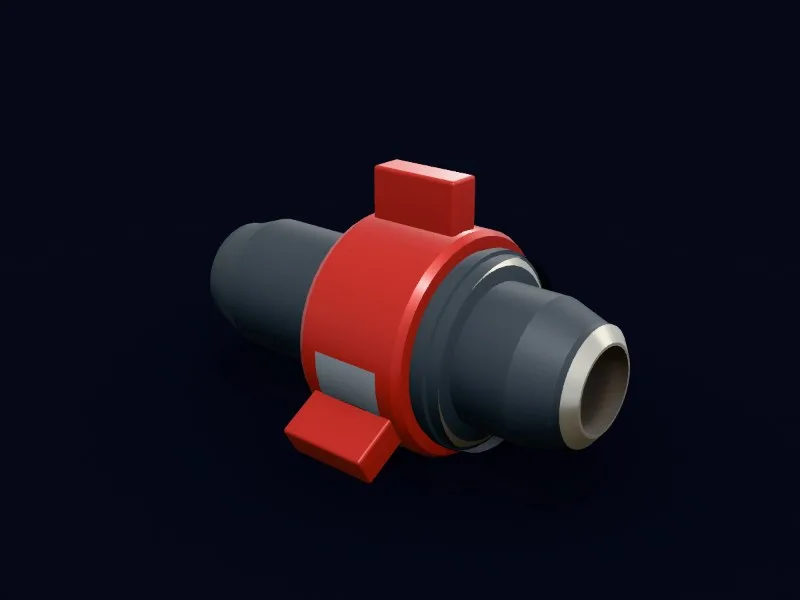

Hammer union (Fig 1502)
API 6A (service, typical), NACE MR0175 (sour, optional)

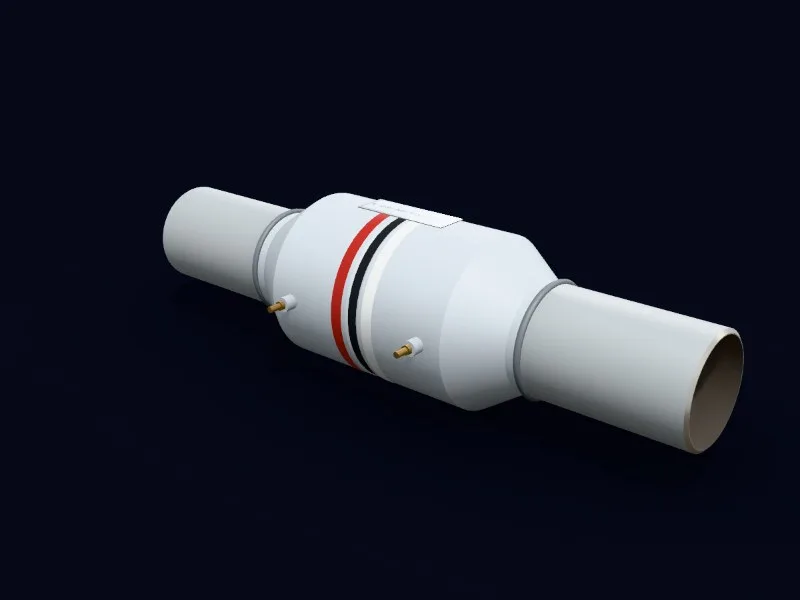

Insulating joint
ISO 15589-1, NACE SP0286
Lap-joint flange and stub end
ASME B16.5, ASME B16.9
Open drain hub / tundish
ISO 13702 (open drains, typical), API RP 14C / API 14J (drain systems, typical)
Pipe clamp
MSS SP-58, MSS SP-69

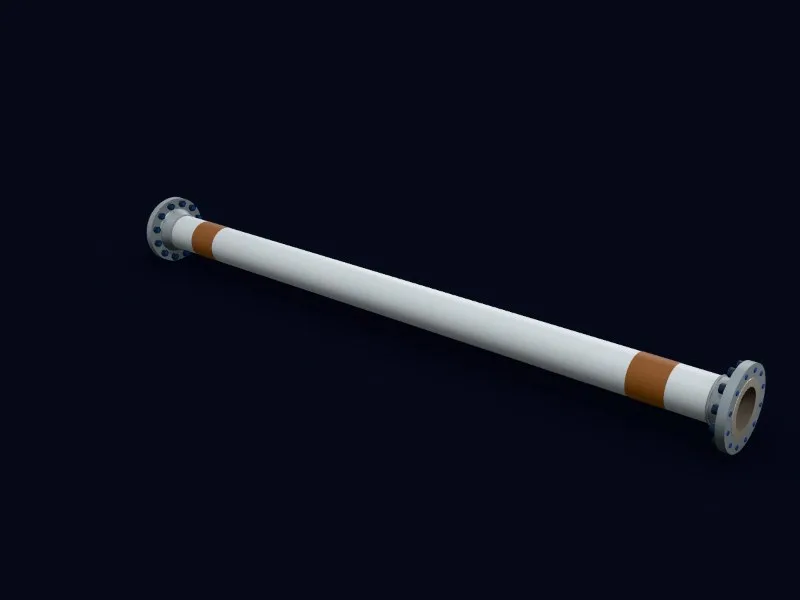

Pipe spool
ASME B36.10M, ASME B16.5

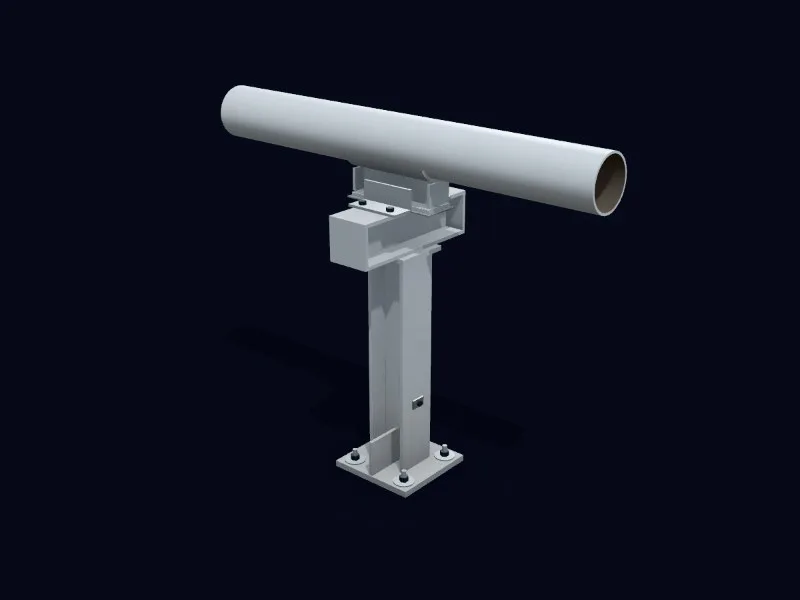

Pipe support
MSS SP-58, ASME B31.3

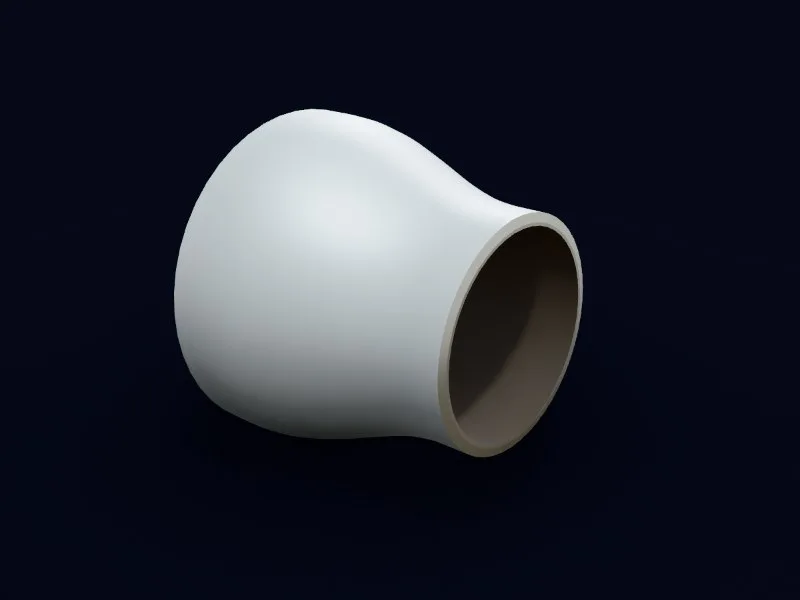

Reducer
ASME B16.9, ASME B16.25

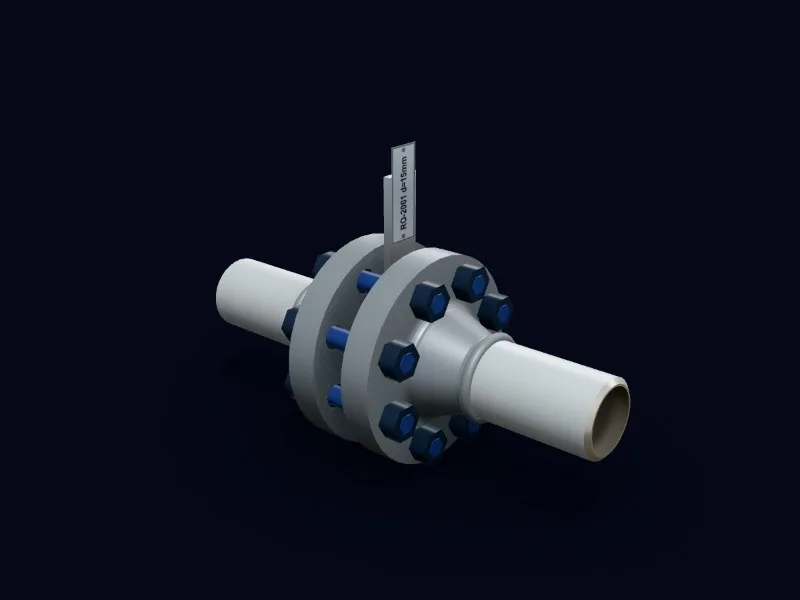

Restriction orifice
ISO 5167-2 (plate geometry), ASME MFC-14M

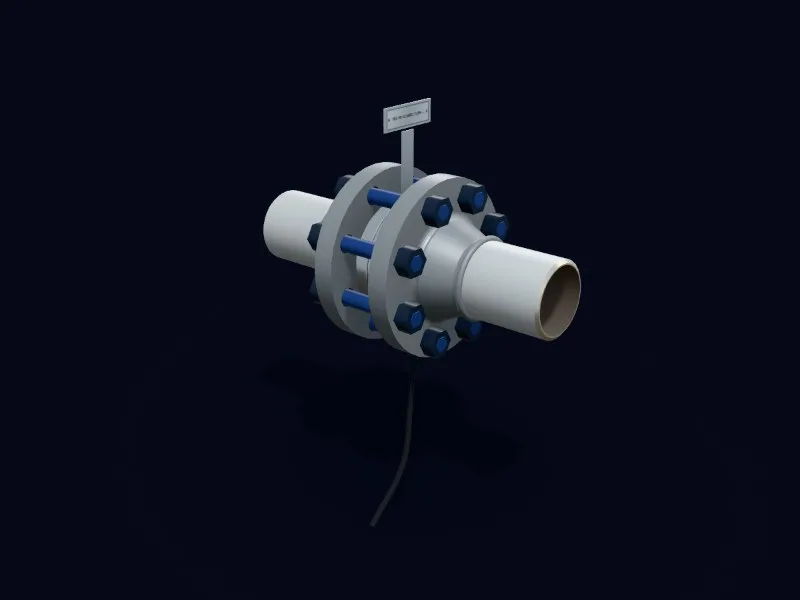

Rupture disc assembly
ISO 4126-2, ASME VIII UG-127

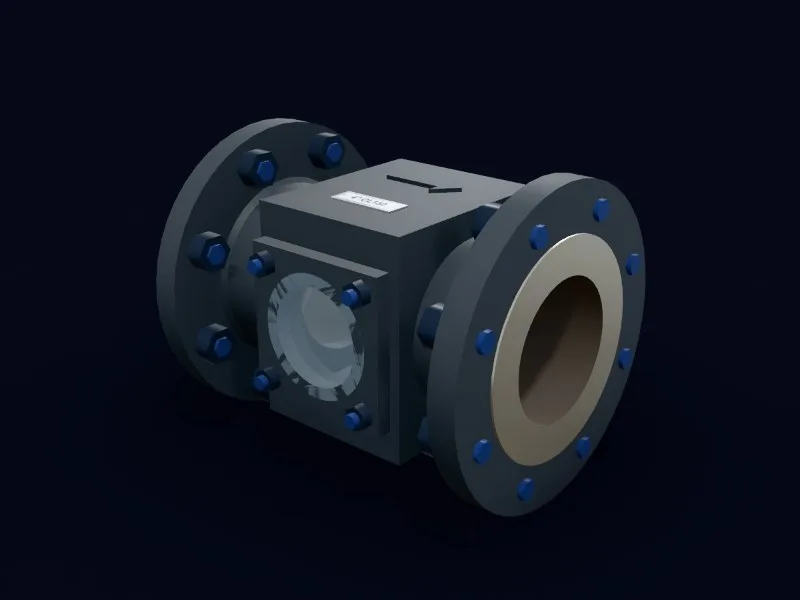

Sight glass
ASME B16.5, ASME B31.3
Slip-on flange
ASME B16.5, ASME B31.3
Small-bore forged fitting
ASME B16.11, ASME B1.20.1

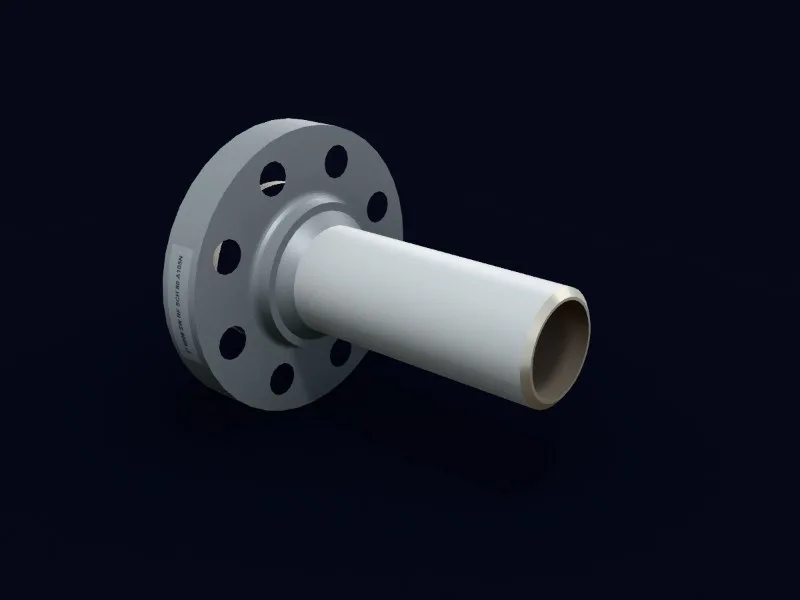

Socket-weld flange
ASME B16.5, ASME B31.3

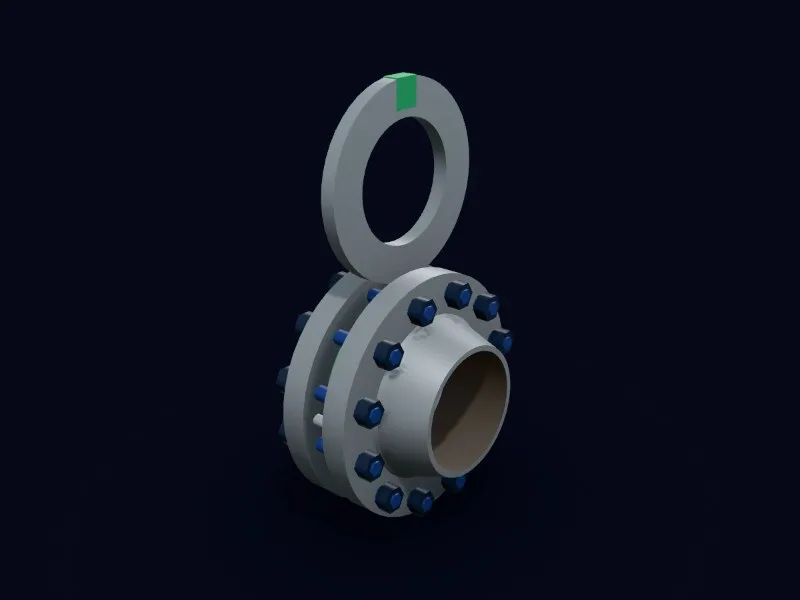

Spectacle blind
ASME B16.48, ASME B16.5

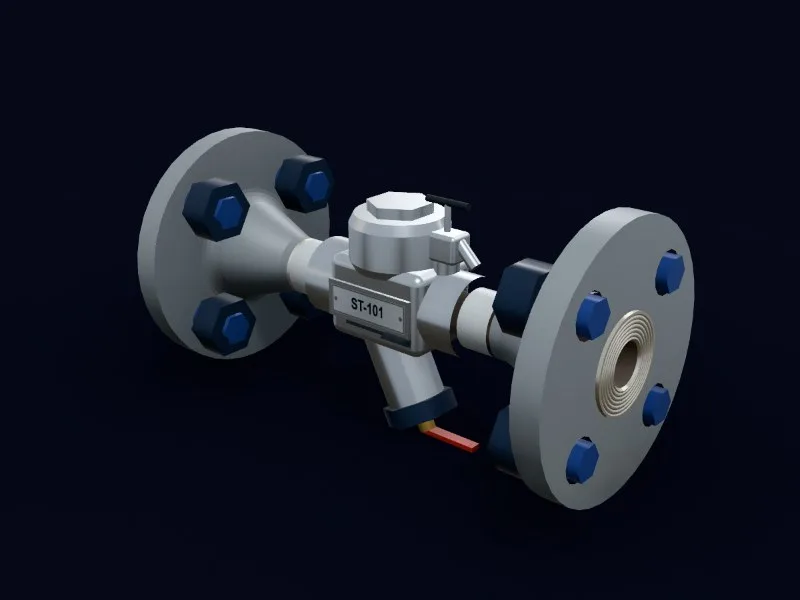

Steam trap
ISO 6704 / EN 26704 (trap types), ISO 6554 / EN 26554 (face-to-face, flanged)
Stud bolt set
ASME B16.5, ASME B18.2.2

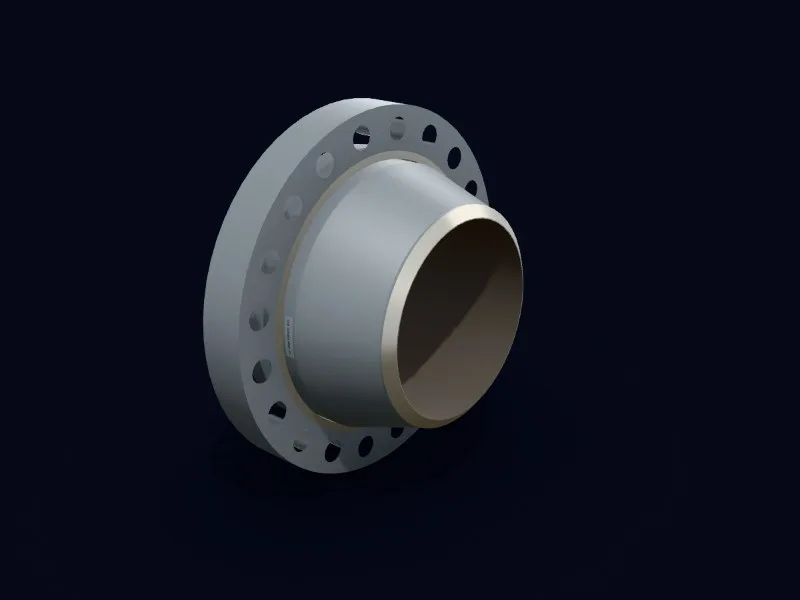

Swivel-ring flange
ASME B16.5 (drilling), MSS SP-44
Tee
ASME B16.9, ASME B16.25

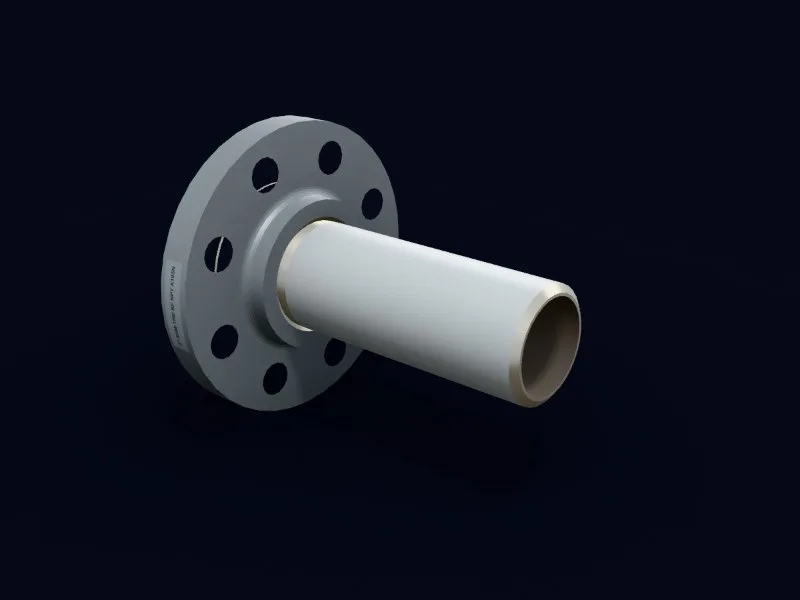

Threaded flange
ASME B16.5, ASME B1.20.1

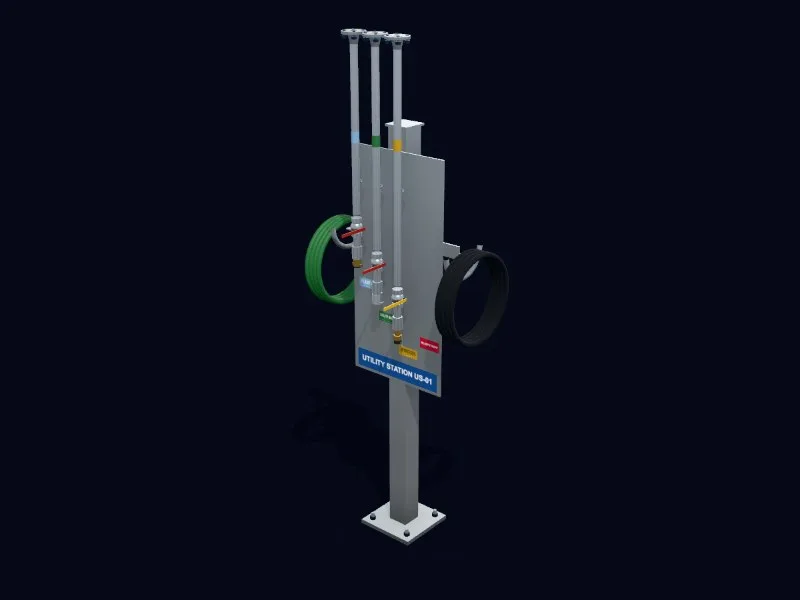

Utility station
ISO 14726, ISO 3864

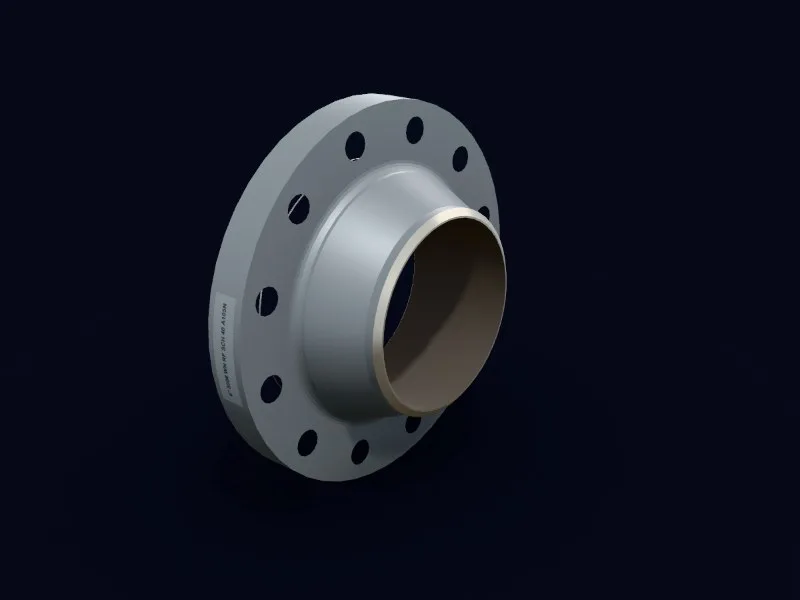

Weld-neck flange
ASME B16.5, ASME B16.47 Series A
Y-strainer
ASME B16.34, ASME B16.5
Valves15
Manual, actuated, control and relief valves sized to B16.10 and API 526.

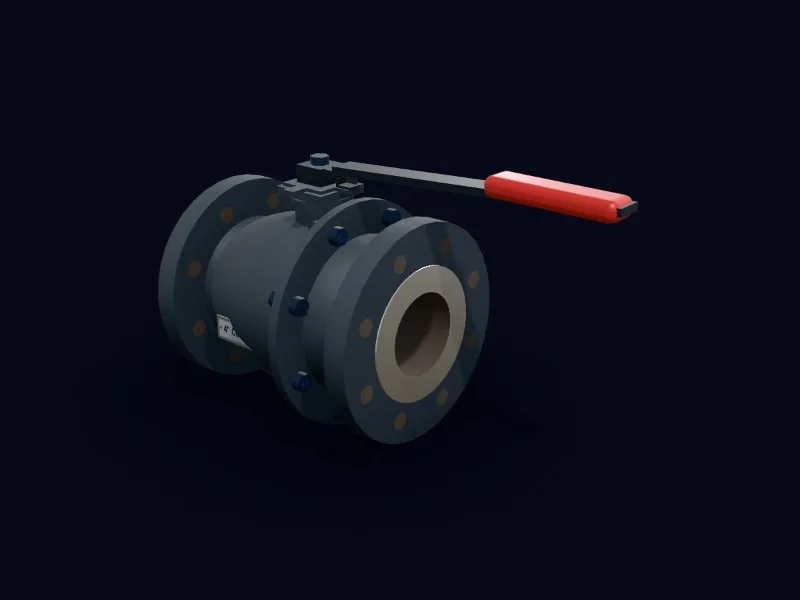

Ball valve
API 6D, ISO 17292
Blowdown valve (BDV)
API 6D, API 521
Butterfly valve
API 609, ISO 5752

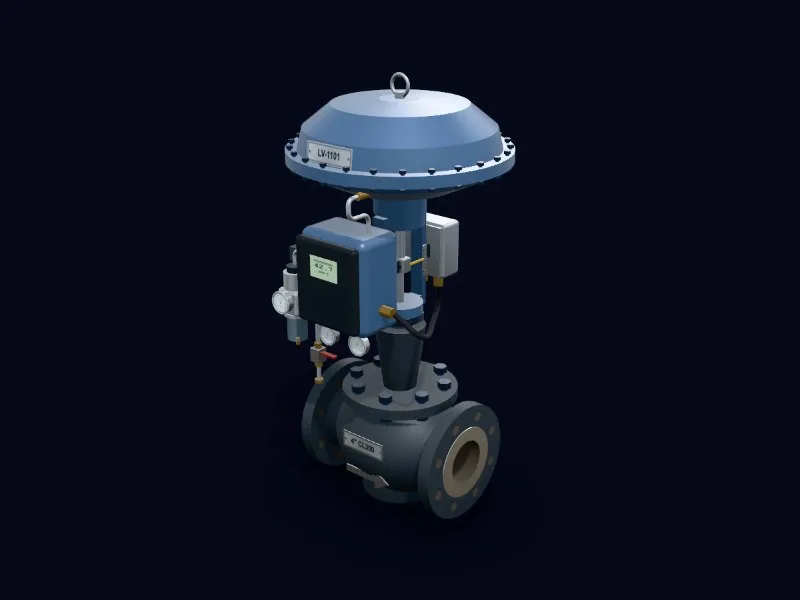

Control valve (globe)
IEC 60534, ISA 75.08.01

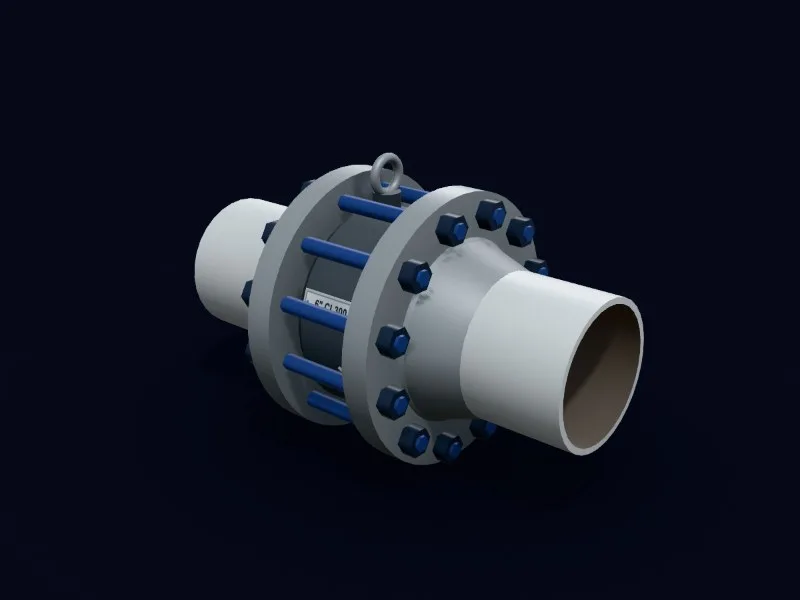

Dual-plate check valve (wafer)
API 594 Type A, ASME B16.34

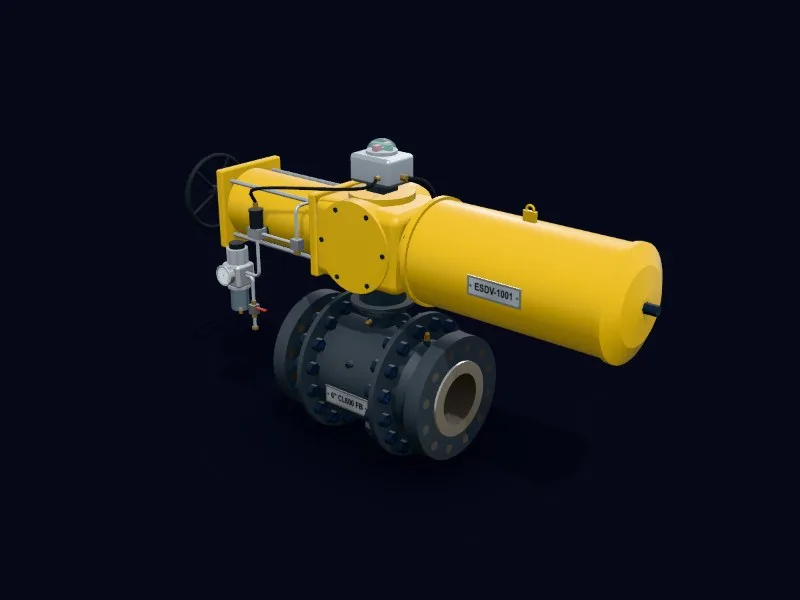

Emergency shutdown valve (ESDV)
API 6D, ISO 14313

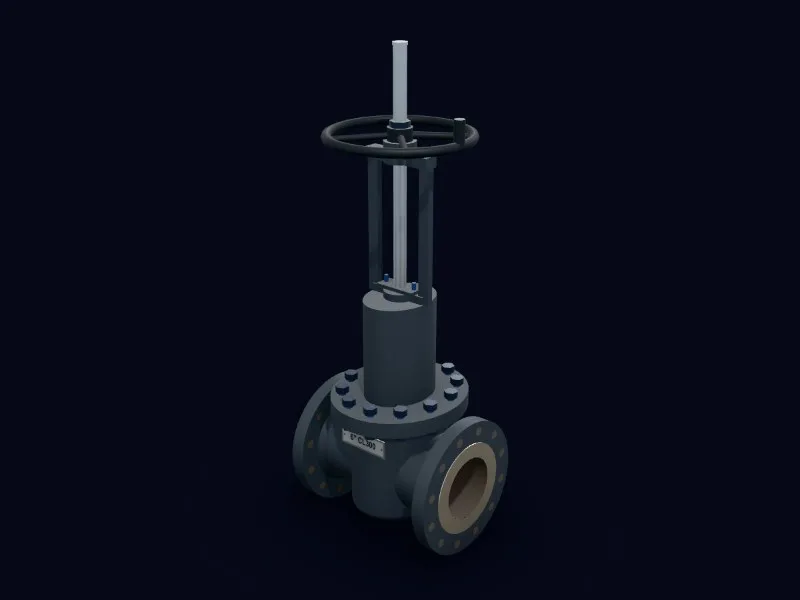

Gate valve
API 600, ASME B16.34

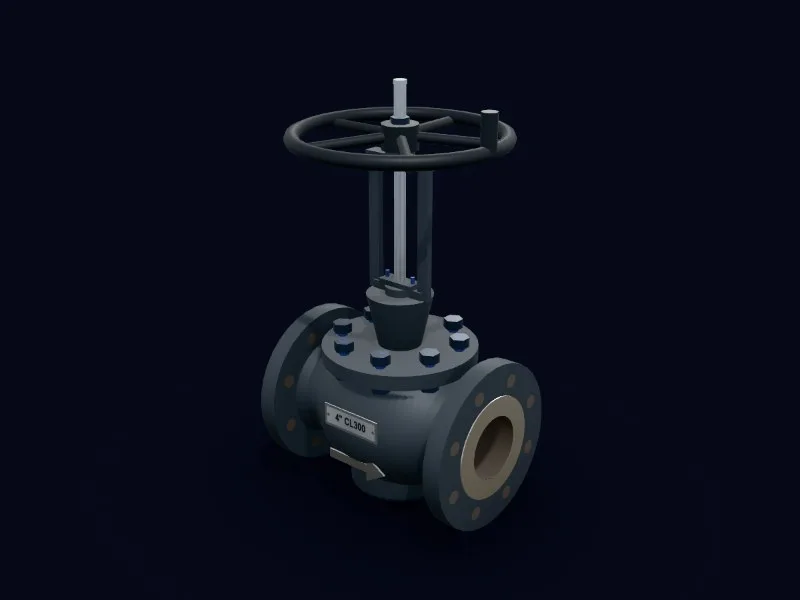

Globe valve
API 623, BS 1873

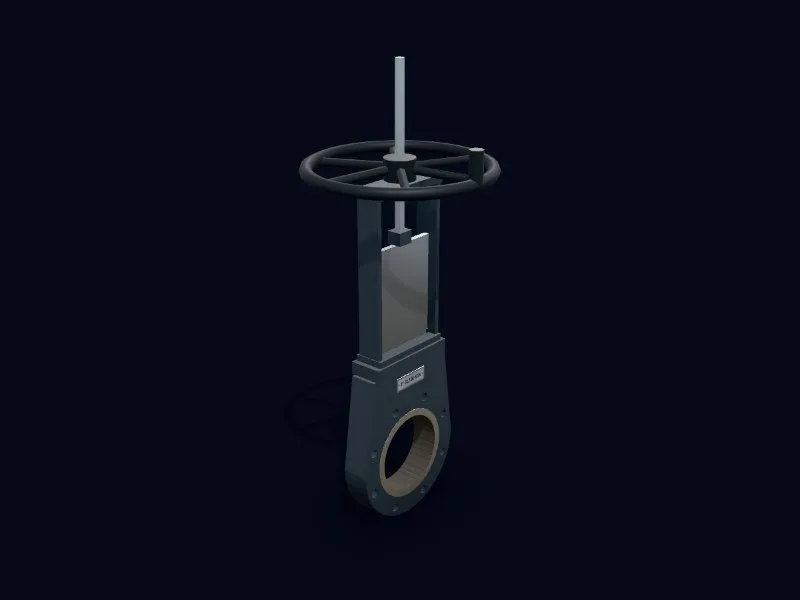

Knife gate valve
MSS SP-81, ASME B16.34

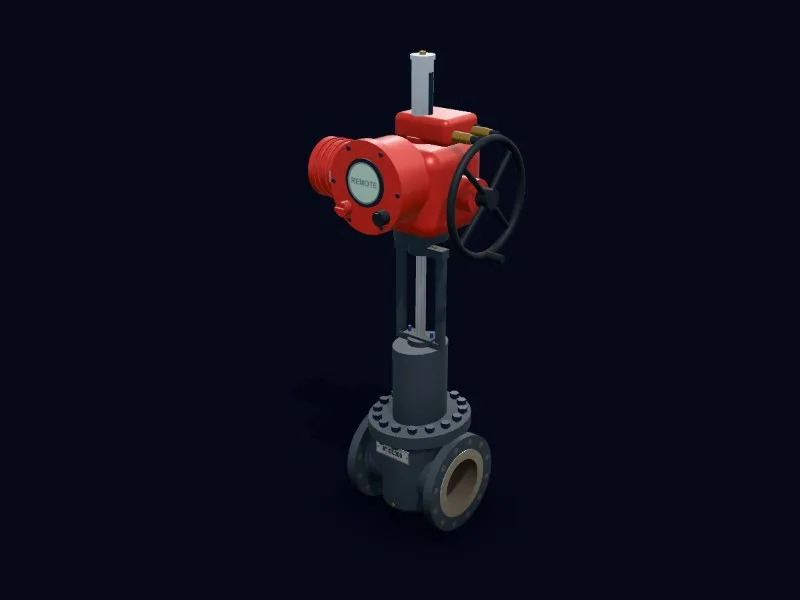

Motor-operated valve (MOV)
API 600, ISO 5210

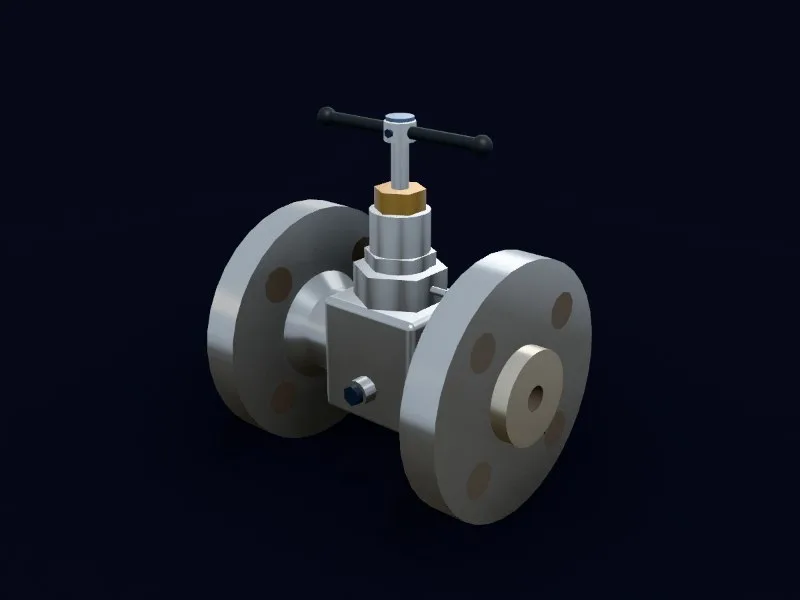

Needle valve (instrument)
ASME B16.34, MSS SP-99
Piston (lift) check valve
BS 1868, API 602

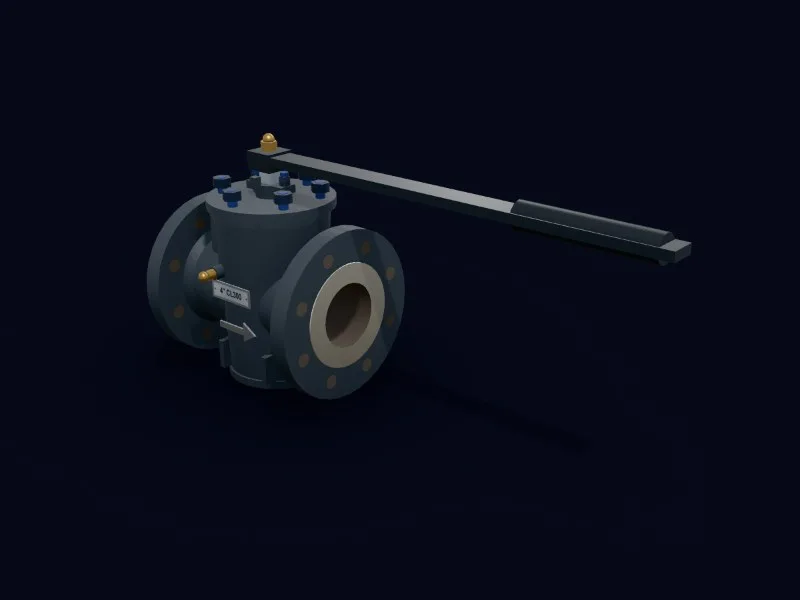

Plug valve (lubricated)
API 599, API 6D

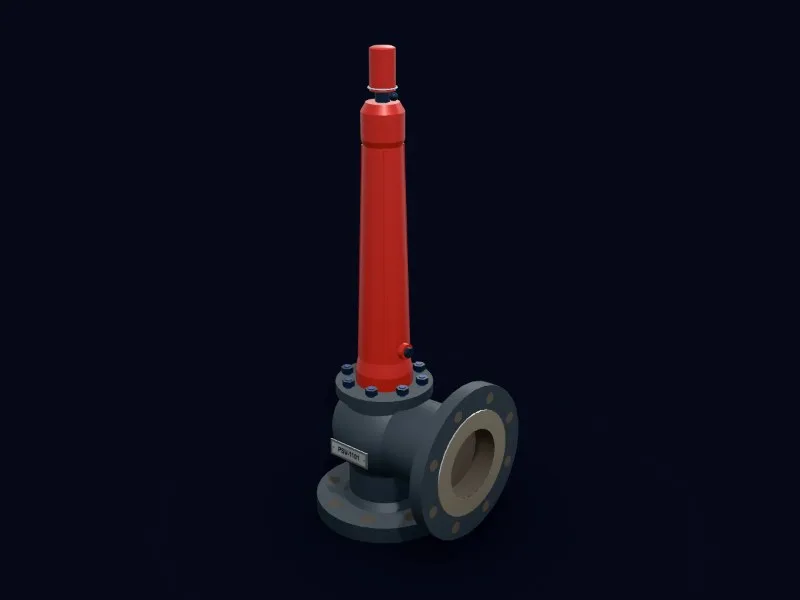

Pressure safety valve (PSV)
API 526, API 520
Swing check valve
API 6D, BS 1868
Vessels & tanks11
ASME VIII pressure vessels, separators, columns, filters and API 650 tanks.
Air / nitrogen receiver
ASME BPVC VIII-1, ASME B16.5
Atmospheric storage tank (API 650)
API 650, API 2000

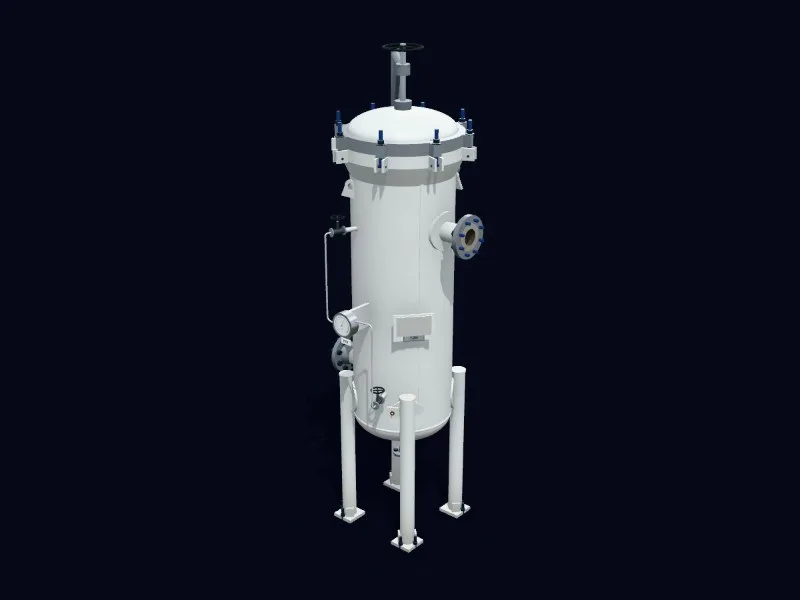

Cartridge filter / coalescer housing
ASME BPVC VIII-1, ASME B16.5
Finger-type slug catcher
ASME B31.8, ASME B16.5
Gas filter-separator
ASME BPVC VIII-1, ASME B16.5

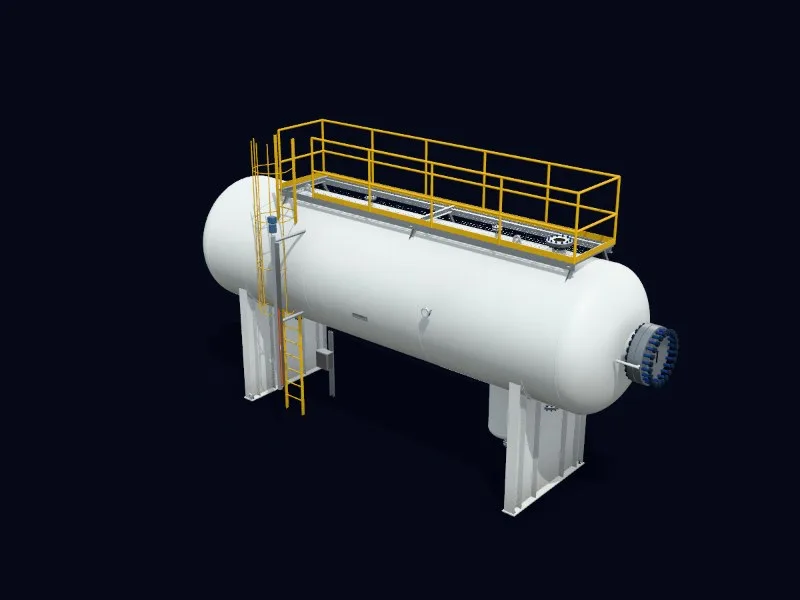

Horizontal separator
ASME BPVC VIII-1, API 12J

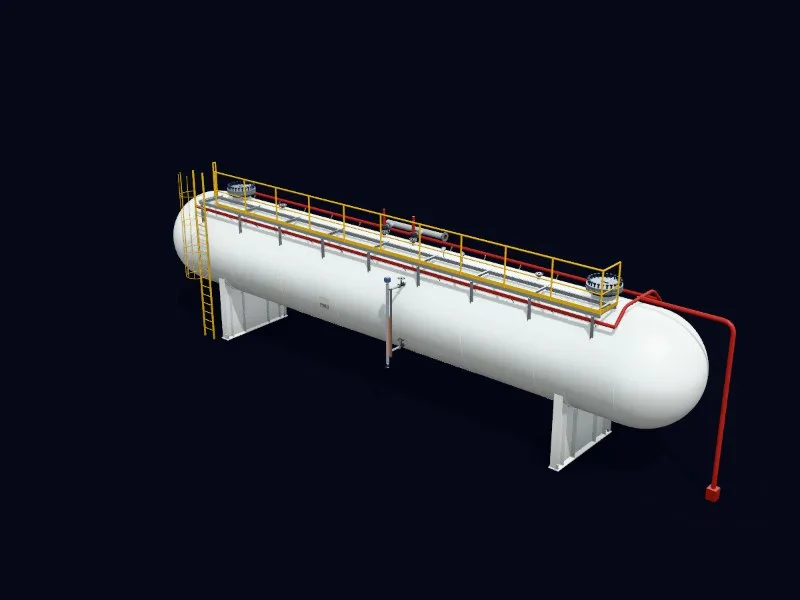

LPG bullet tank
ASME BPVC VIII-1, API 2510

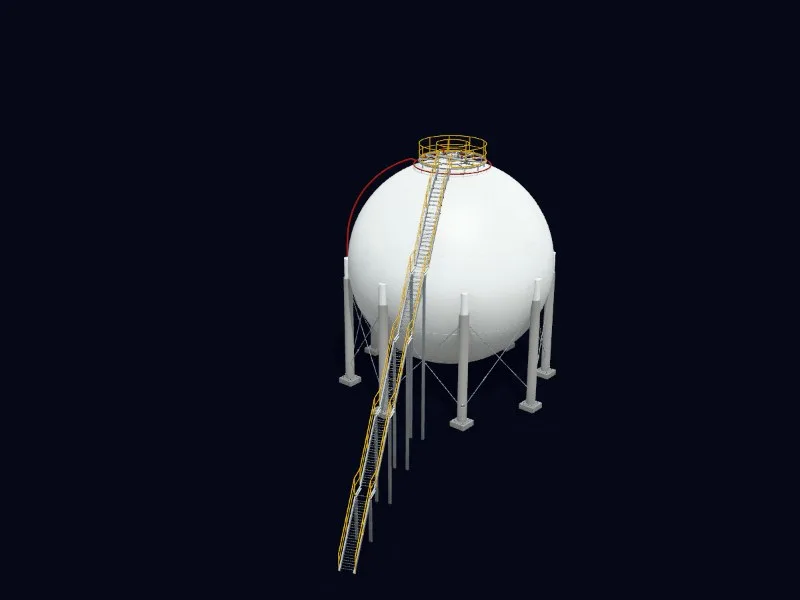

LPG sphere
ASME BPVC VIII-1, API 2510
Trayed / packed column
ASME BPVC VIII-1, ASME B16.5
Vertical separator / scrubber
ASME BPVC VIII-1, API 12J
Wellhead cyclonic desander
ASME BPVC VIII-1, ASME B16.5
Heat transfer & flare11
TEMA exchangers, air coolers, plate exchangers, heaters, flare and vent stacks.
Air-cooled exchanger (fin-fan)
API 661 / ISO 13706, ASME B16.5

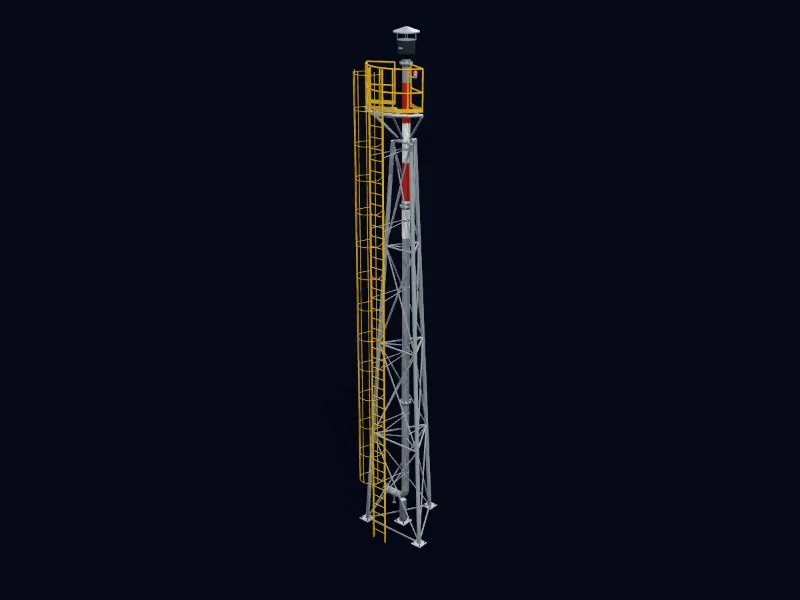

Cold vent stack
API 521, ISO 16852

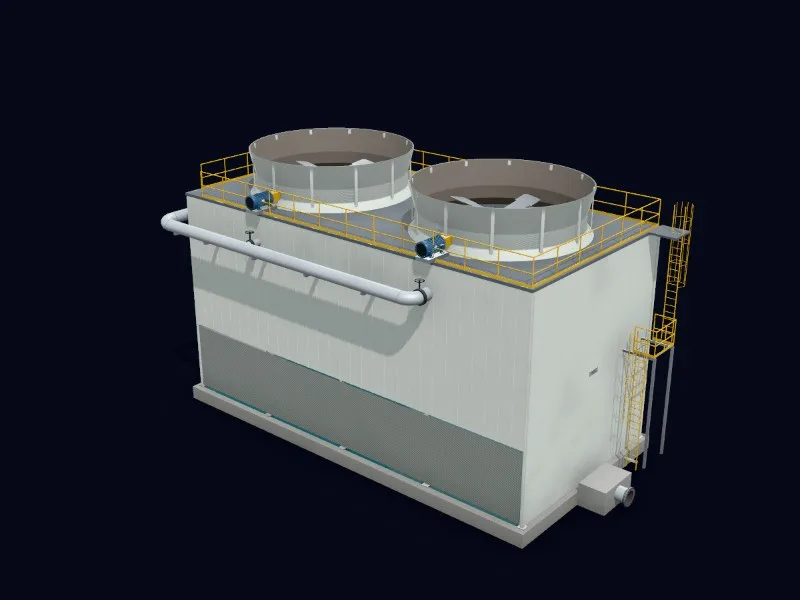

Cooling tower (induced draft, counterflow)
CTI STD-201, CTI ATC-105

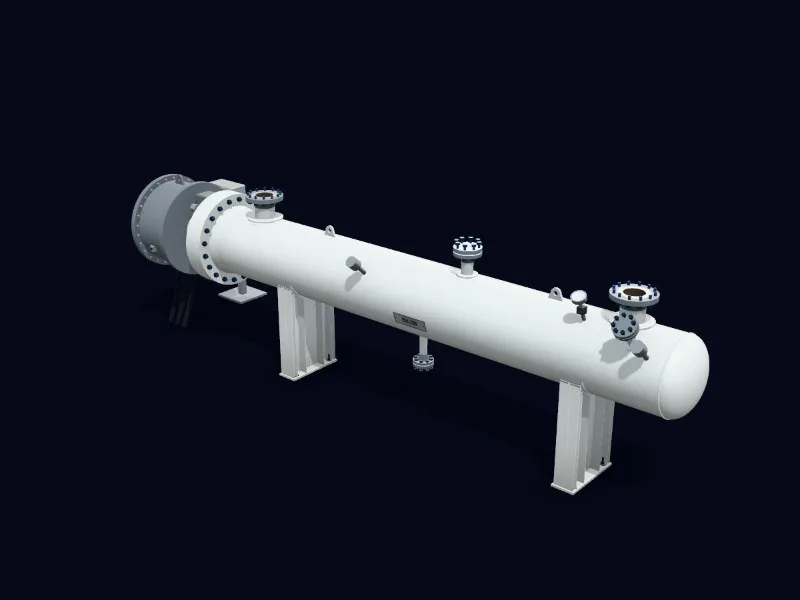

Electric process heater
ASME BPVC VIII-1, IEC 60079-1

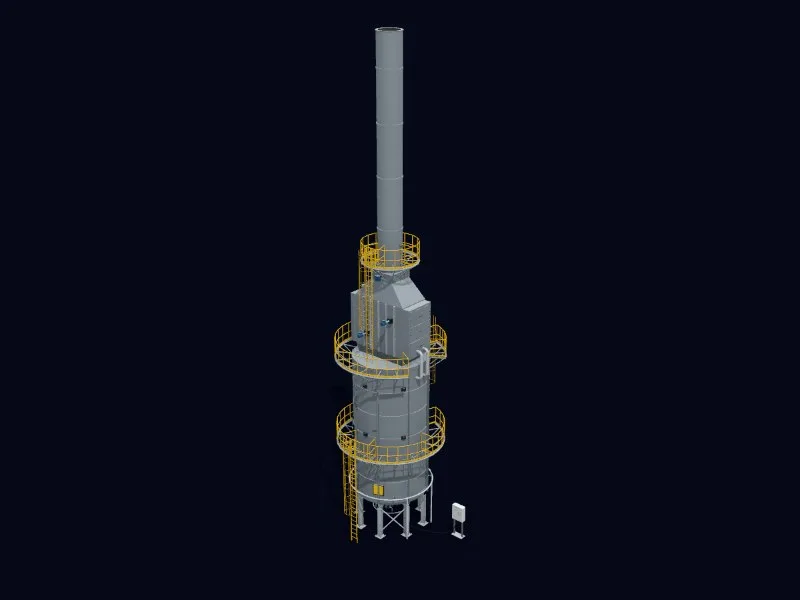

Fired heater (vertical cylindrical)
API 560 / ISO 13705, API 535

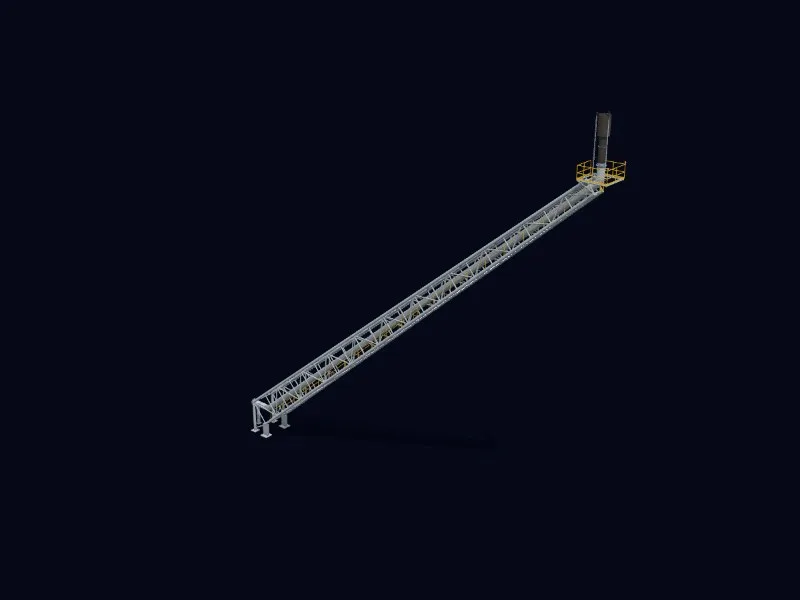

Flare boom
API 521, API 537
Flare stack
API 521, API 537

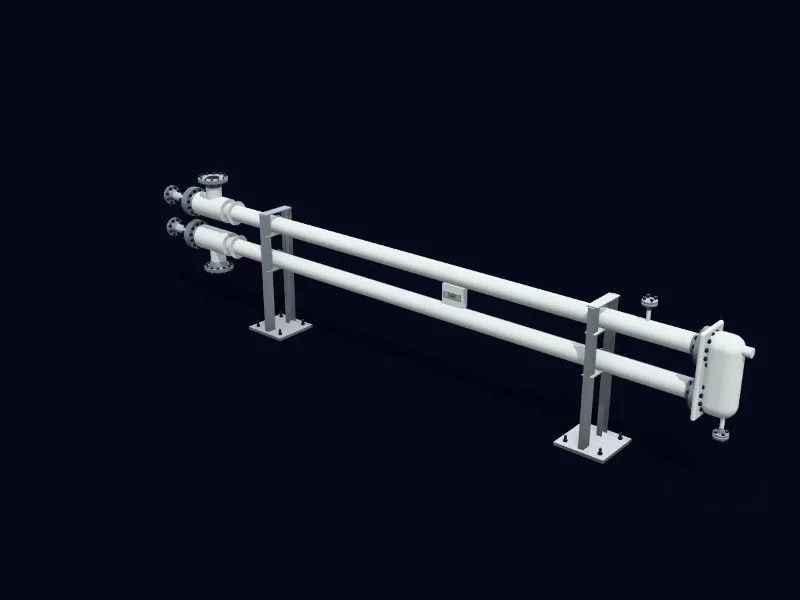

Hairpin (double-pipe) exchanger
ASME BPVC VIII-1, TEMA

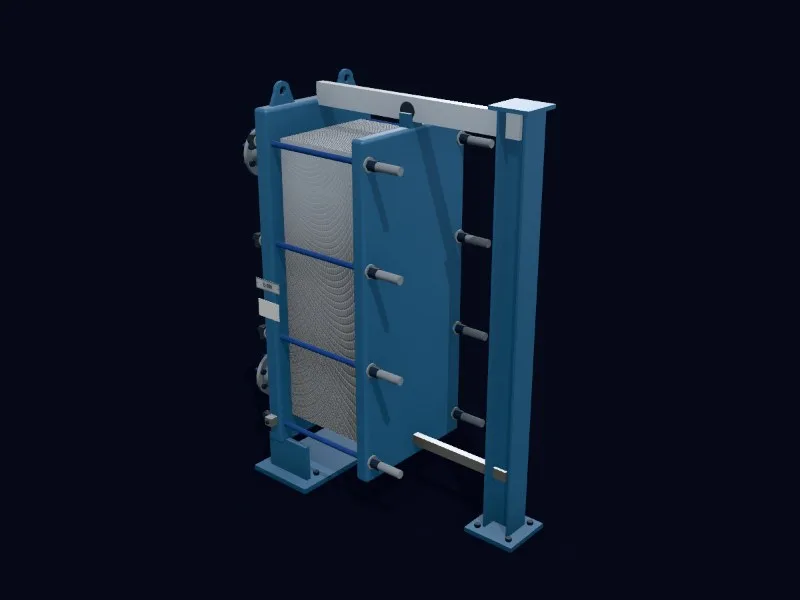

Plate heat exchanger
ASME BPVC VIII-1, EN 13445

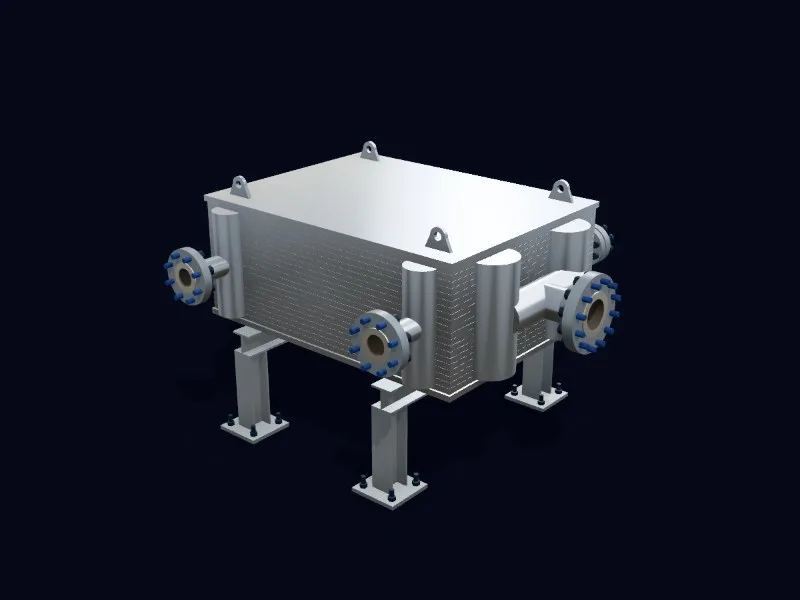

Printed-circuit heat exchanger (PCHE)
ASME BPVC VIII-1, ASME B16.5

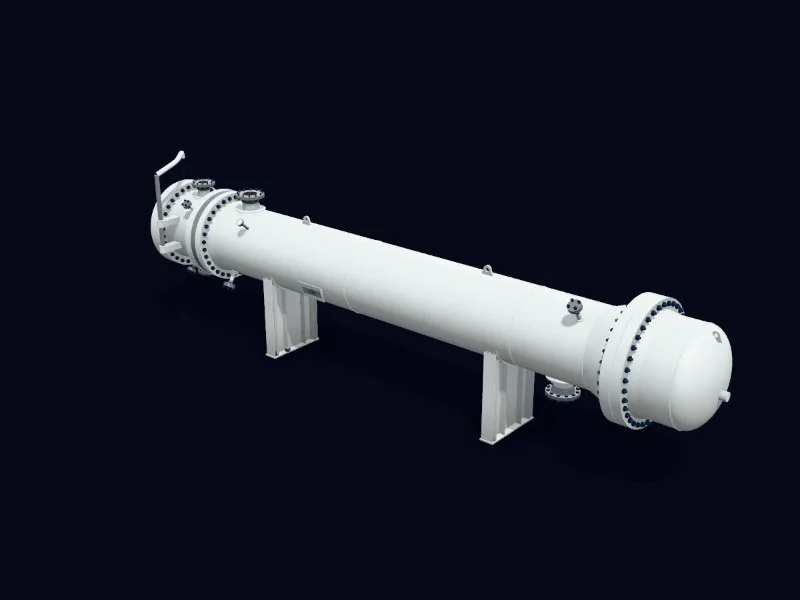

Shell-and-tube exchanger
TEMA 10th ed., ASME BPVC VIII-1
Rotating equipment17
API 610 pumps, API 617/618 compressors, gas turbines, motors and engines.

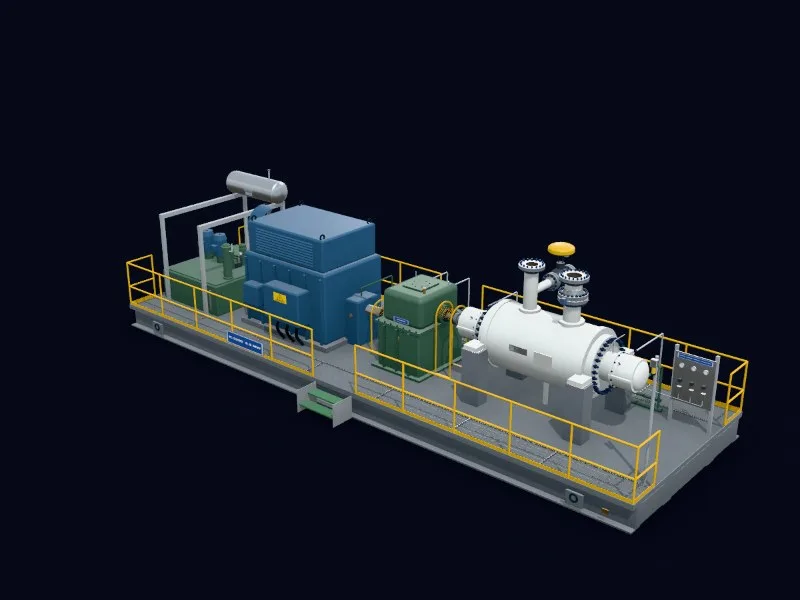

Centrifugal compressor package (API 617)
API 617, API 614

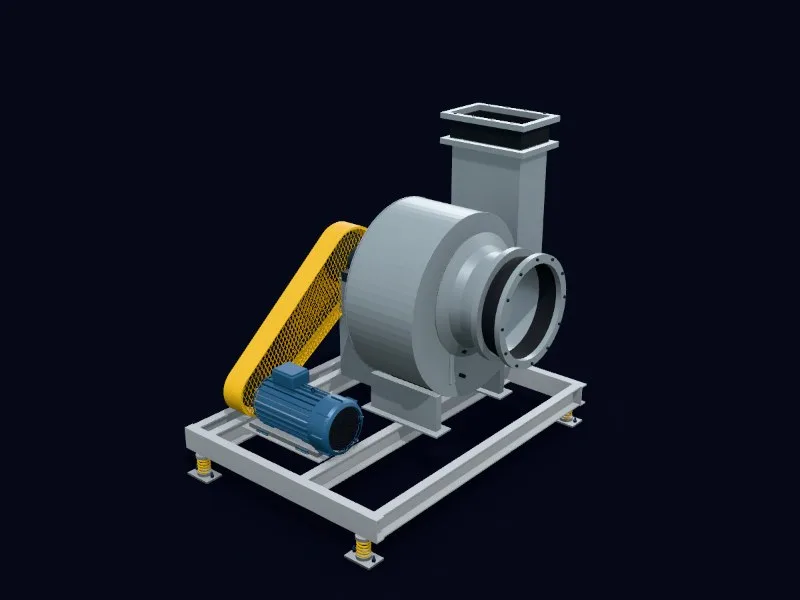

Centrifugal fan (belt driven)
AMCA 99 (arrangement 9), ISO 13349
Centrifugal pump (API 610 OH2)
API 610 (OH2), API 682 Plan 53A

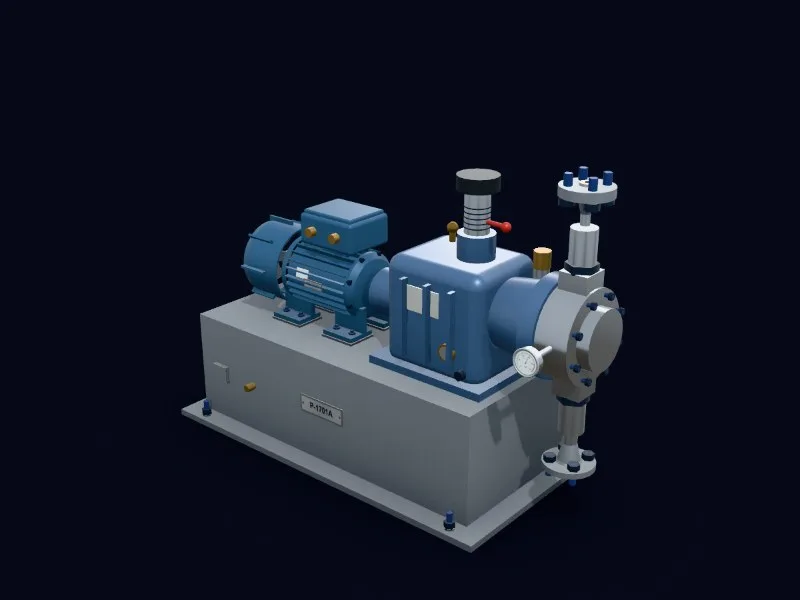

Diaphragm metering pump (API 675)
API 675, IEC 60034 / 60072
Diesel firewater pump (NFPA 20)
NFPA 20, API 610 (VS1 / BB1)

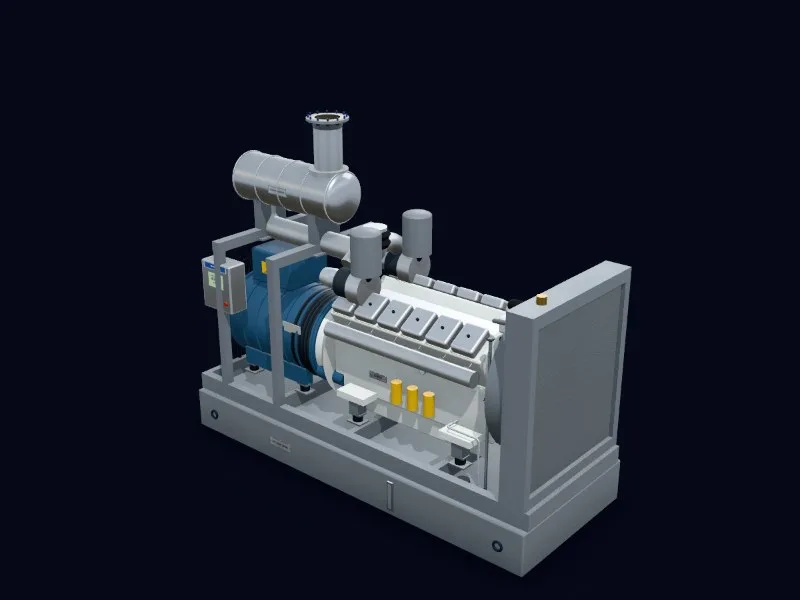

Diesel generator set (emergency / standby)
ISO 8528, IEC 60034-1

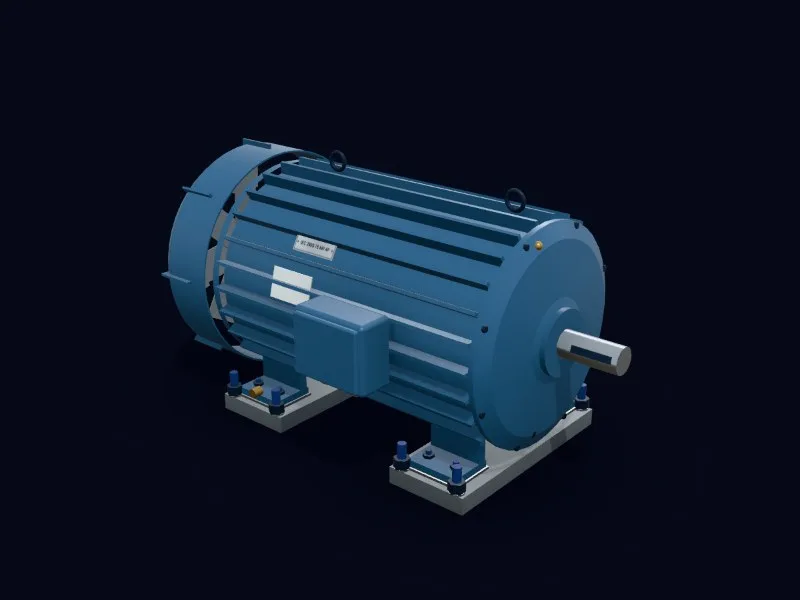

Electric motor (IEC TEFC)
IEC 60034, IEC 60072-1

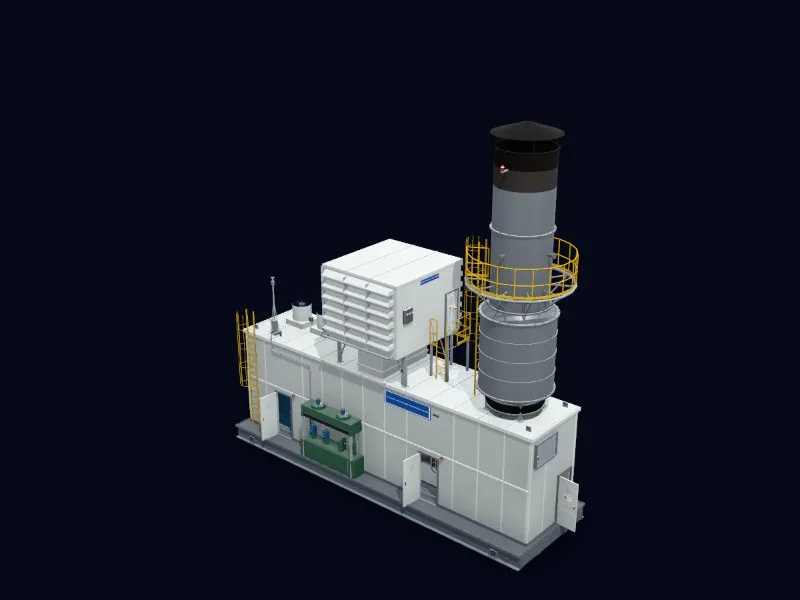

Gas turbine generator (API 616)
API 616, ISO 3977

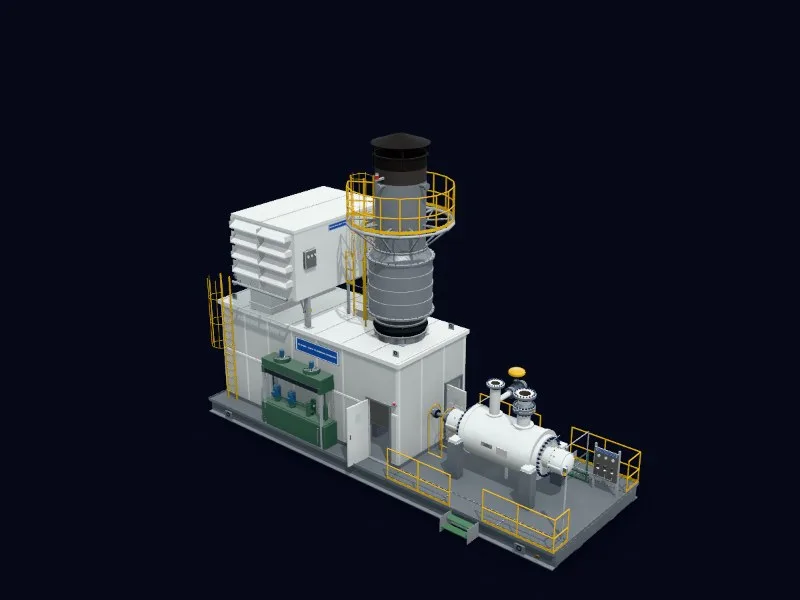

Gas-turbine-driven compressor train
API 616, API 617

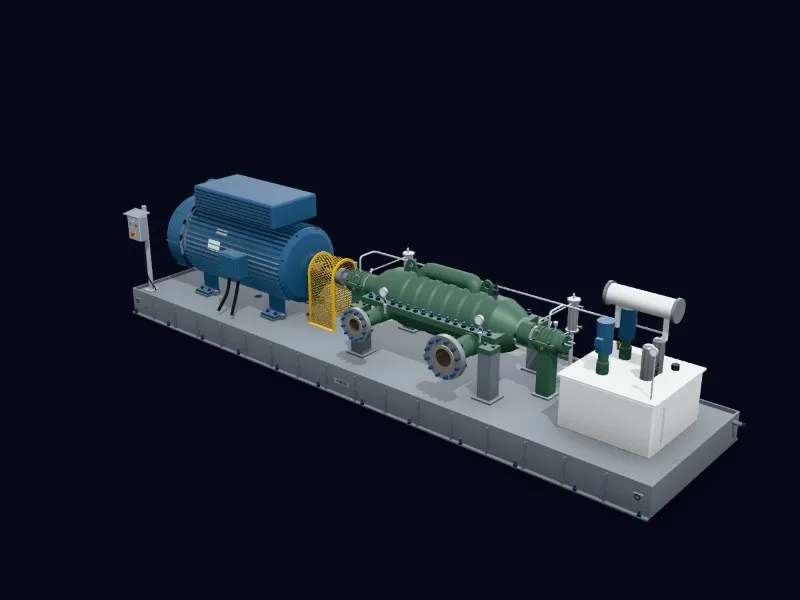

Multistage pump (API 610 BB3)
API 610 (BB3), API 614

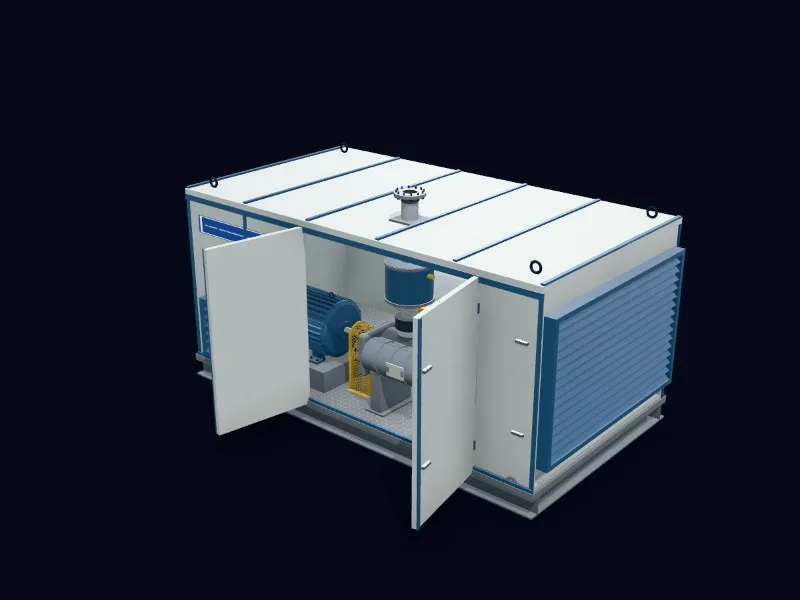

Oil-injected screw compressor package (API 619)
API 619, ISO 1217

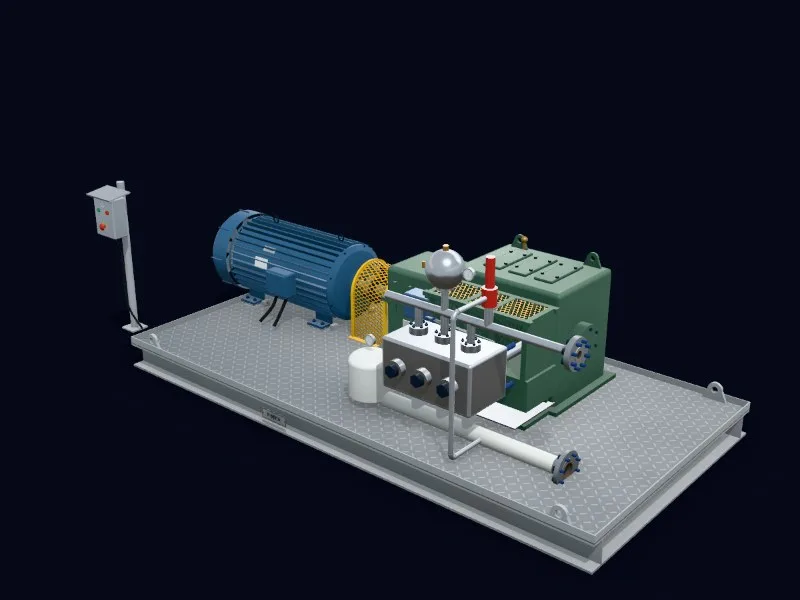

Plunger pump (API 674 triplex)
API 674, API 618 (pulsation guidance)

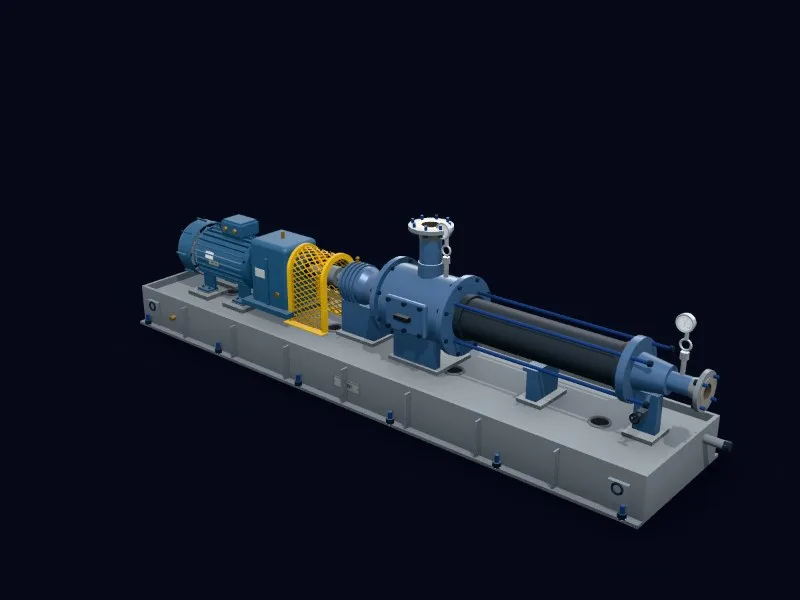

Progressive cavity pump
API 676, IEC 60034 / 60072

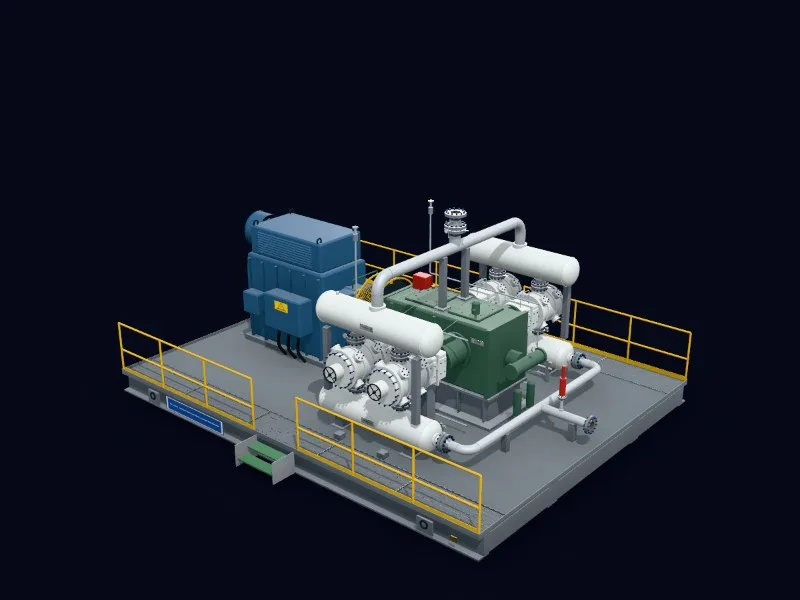

Reciprocating compressor (API 618)
API 618, API 11P

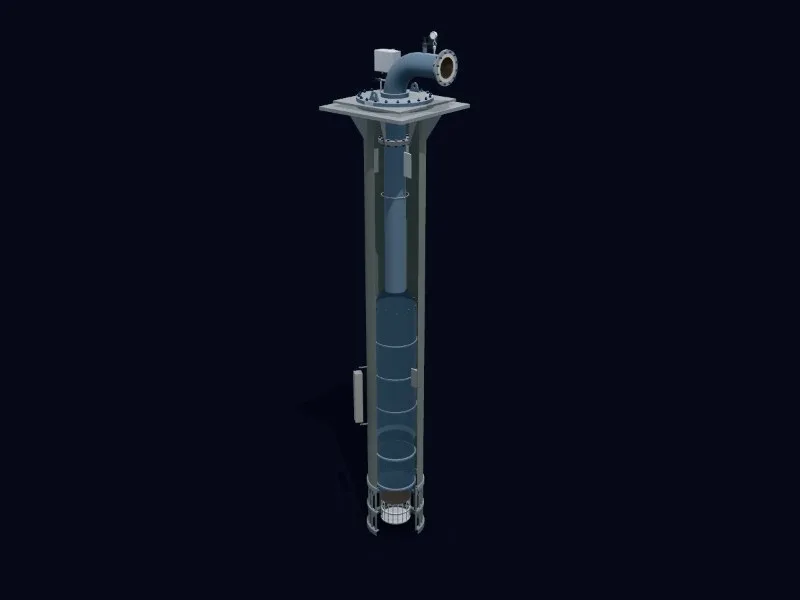

Submersible caisson pump
API 610 (VS family, submersible), ASME B16.5
Vertical inline pump (API 610 OH3)
API 610 (OH3), API 682 Plan 11
Vertical turbine caisson pump (API 610 VS1)
API 610 (VS1), IEC 60034 / 60072
Wells & pipelines9
API 6A trees and wellheads, BOPs, manifolds, pig traps and risers.
BOP stack (surface)
API 16A, API 53
Christmas tree (surface, API 6A)
API 6A, API 6B / 6BX

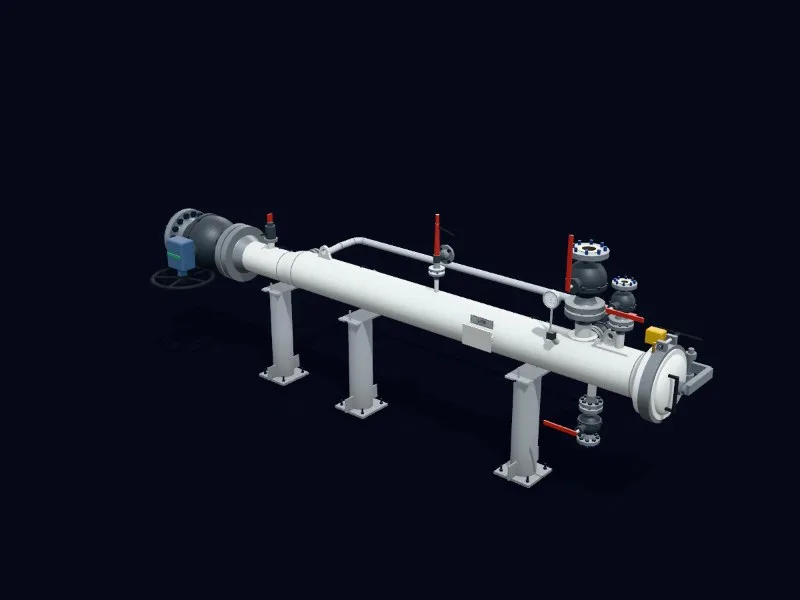

Pig launcher / receiver
API 6D, ASME VIII-1

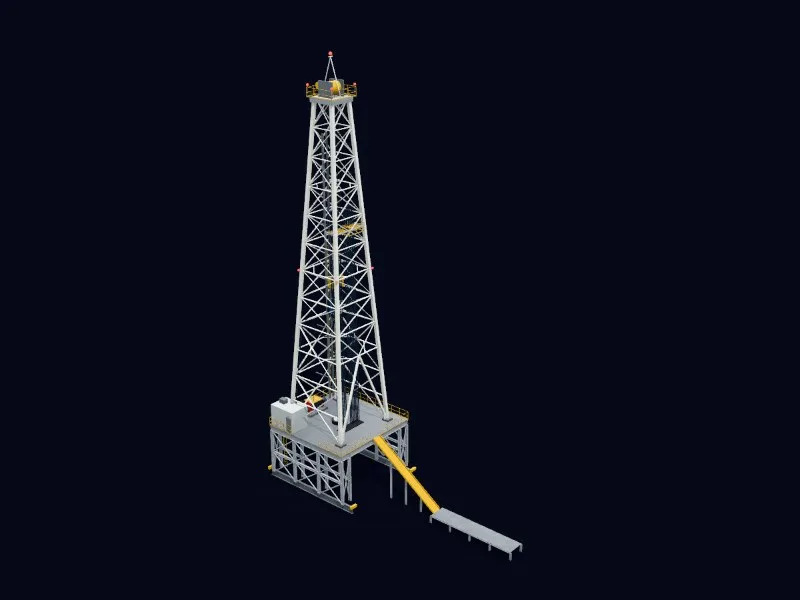

Platform drilling derrick
API 4F, API 8C

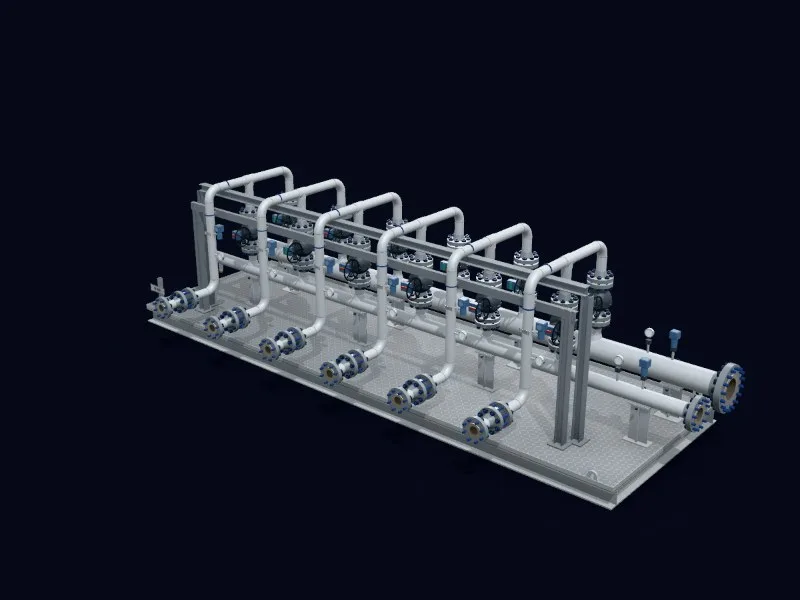

Production / test manifold
ASME B31.3, ASME B16.5

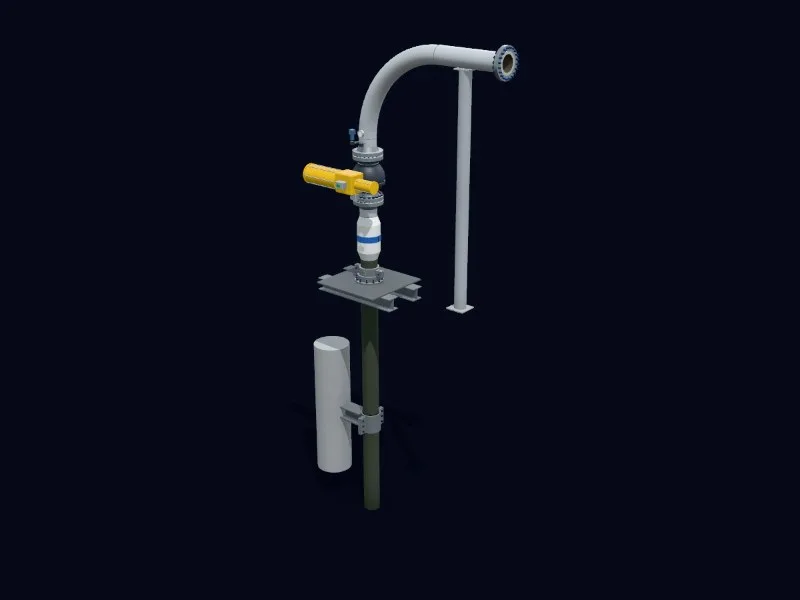

Riser top section
API RP 2RD, API 6D

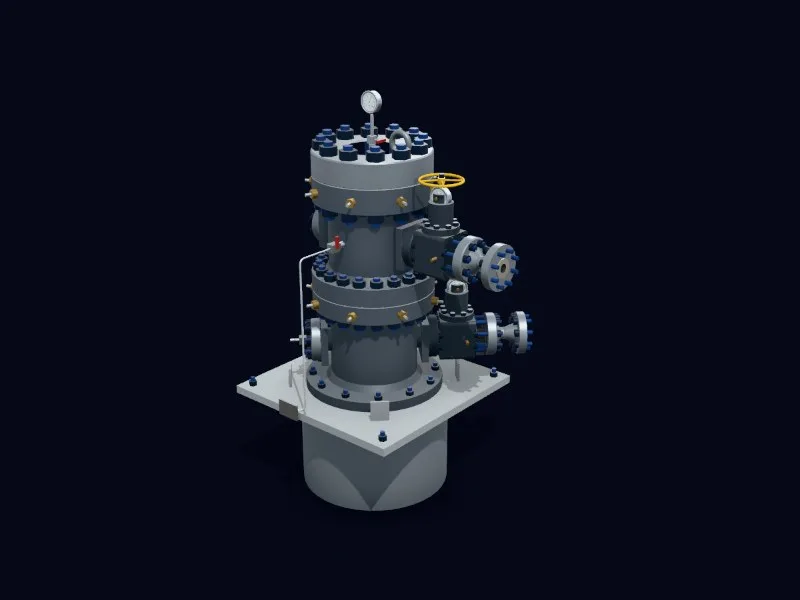

Wellhead (casing head and spools)
API 6A, API 6B / 6BX

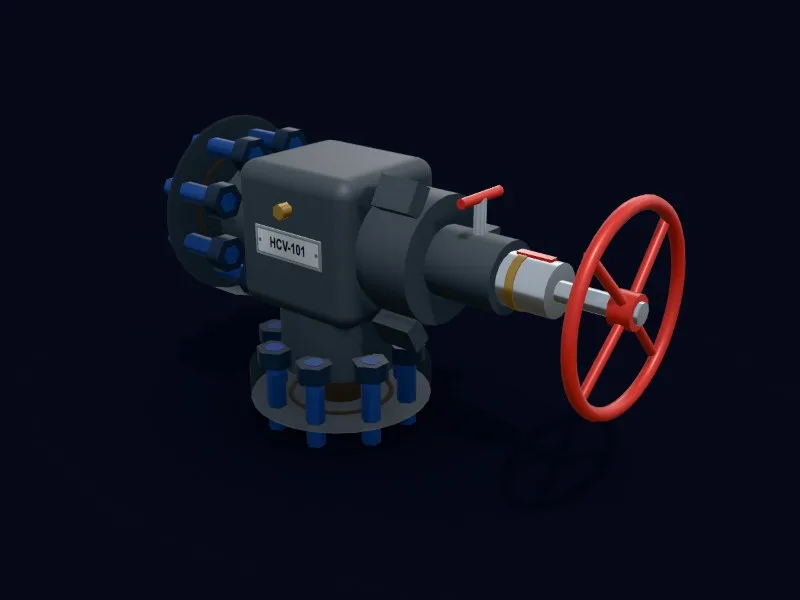

Wellhead choke (API 6A)
API 6A, API 6B / 6BX

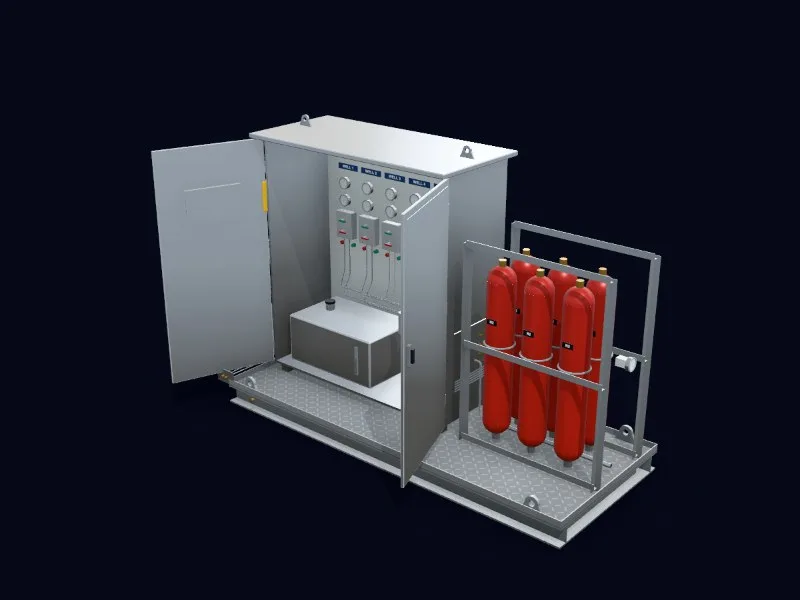

Wellhead control panel (WHCP)
API 6A, API 14D
Drilling & subsea11
Mud system, pipe handling, well service units, subsea manifolds, PLETs and umbilical terminations.

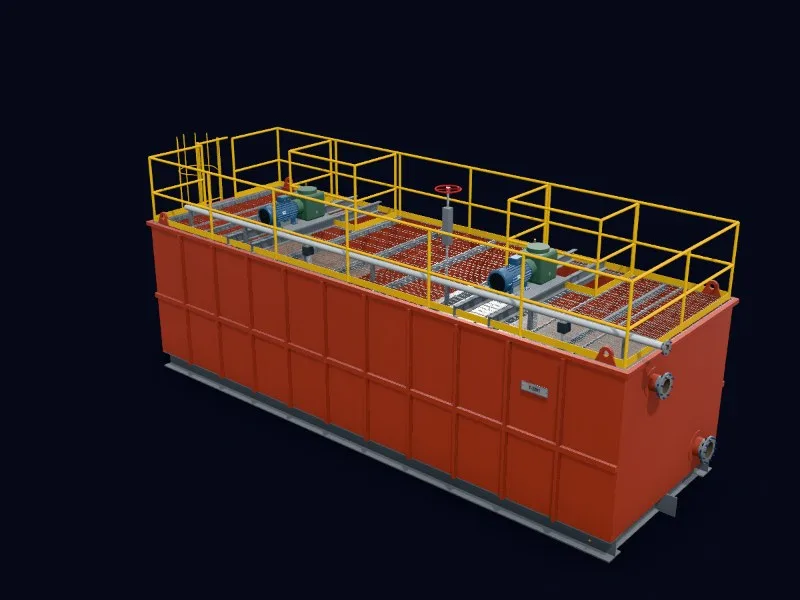

Active mud tank
API RP 13C, ISO 14122-2/3/4
Cementing unit (twin pump skid)
API 10A, API 7K
Choke & kill manifold
API 16C, API 6A
Coiled-tubing unit (reel, cabin, power pack)
API RP 16ST, API 5ST

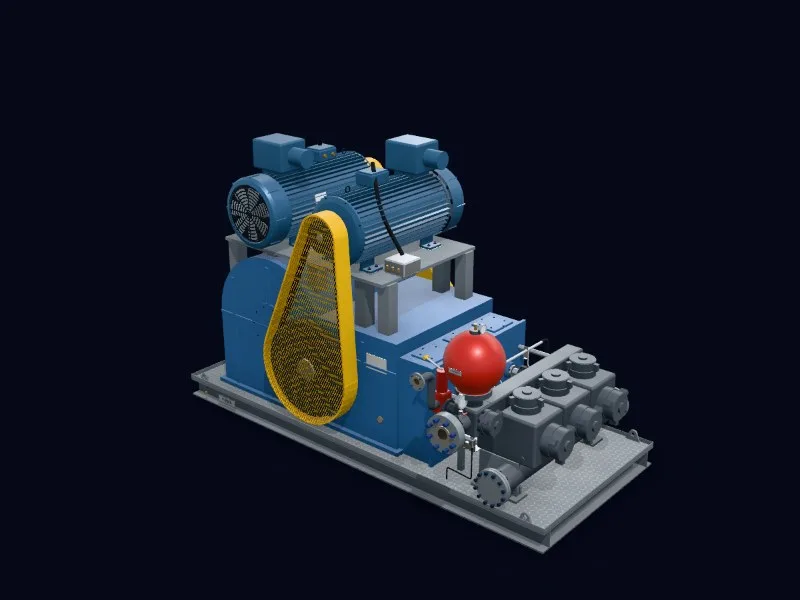

Drilling mud pump
API 7K, API 6A
Pipe-handling catwalk & V-door ramp
API 7K, API 5DP

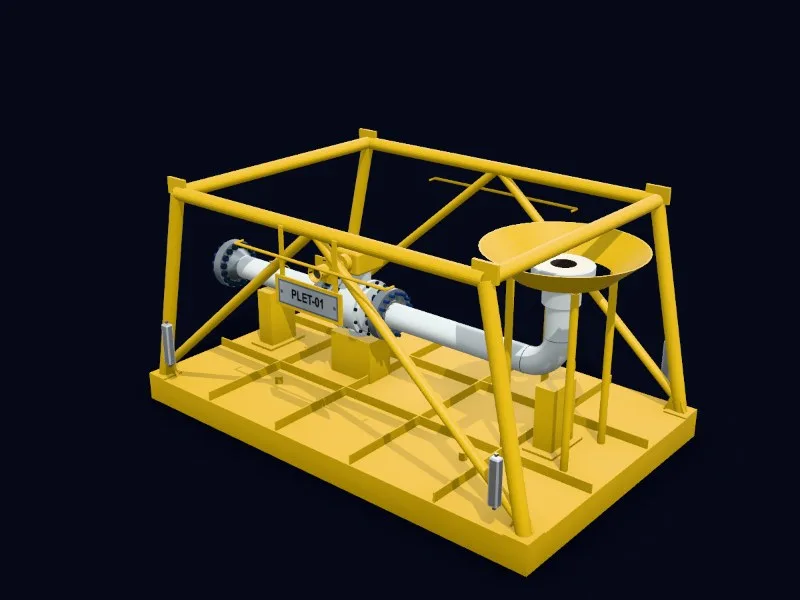

Pipeline end termination (PLET)
API 17P, API 17D
Shale shaker (linear motion)
API RP 13C, ISO 13501 (screen testing)

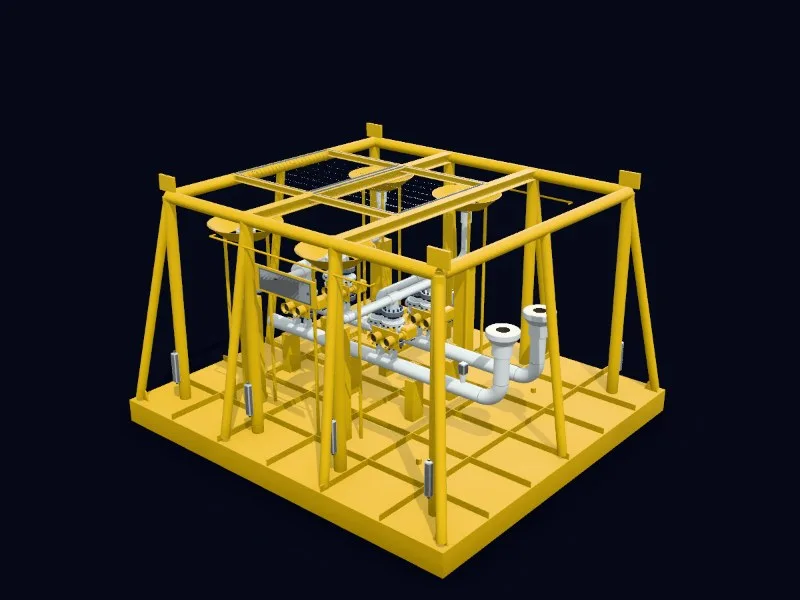

Subsea production manifold
API 17P, API 17D

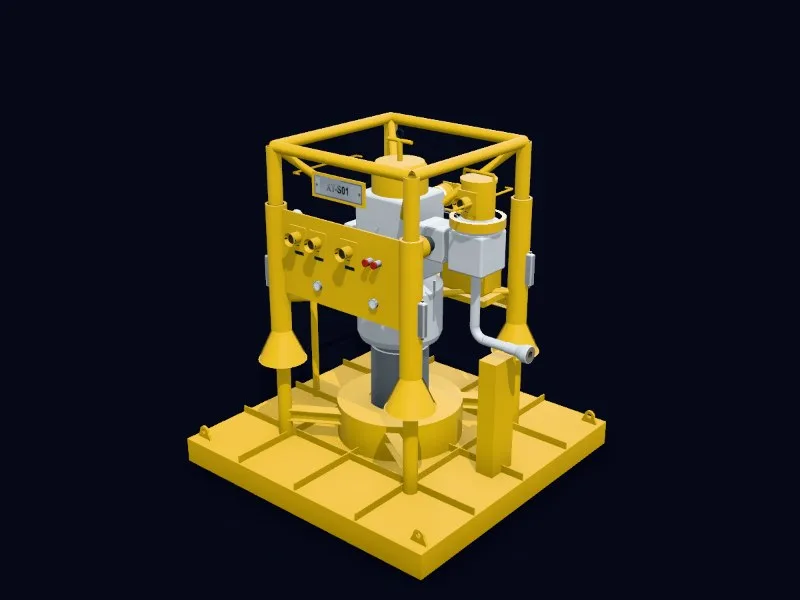

Subsea Xmas tree (vertical)
API 17D, ISO 13628-4

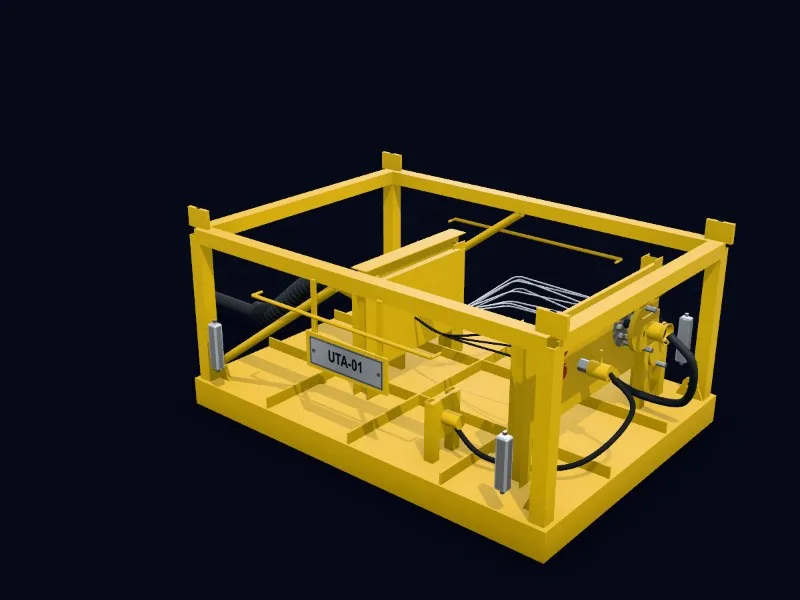

Umbilical termination assembly (UTA)
API 17E, ISO 13628-5
Instruments15
Transmitters, gauges, flowmeters, level instruments and analysers.

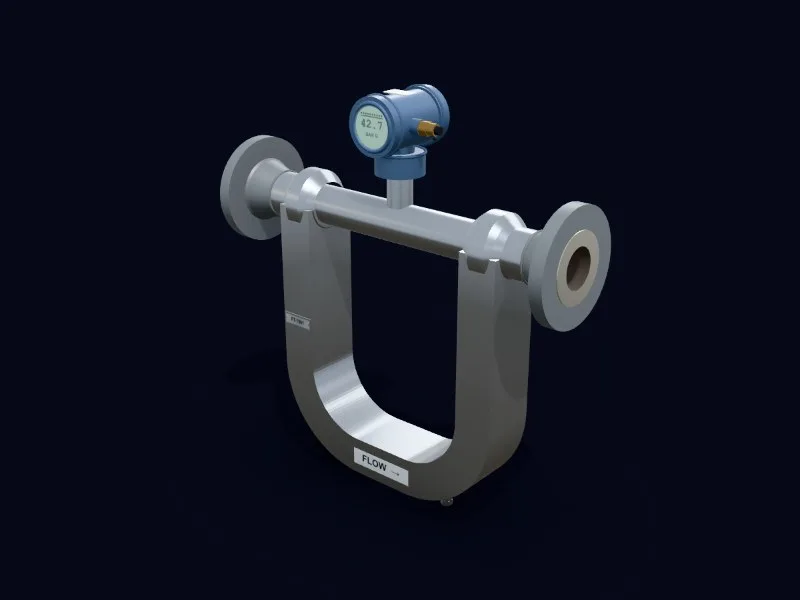

Coriolis flowmeter
ISO 10790, API MPMS 5.6

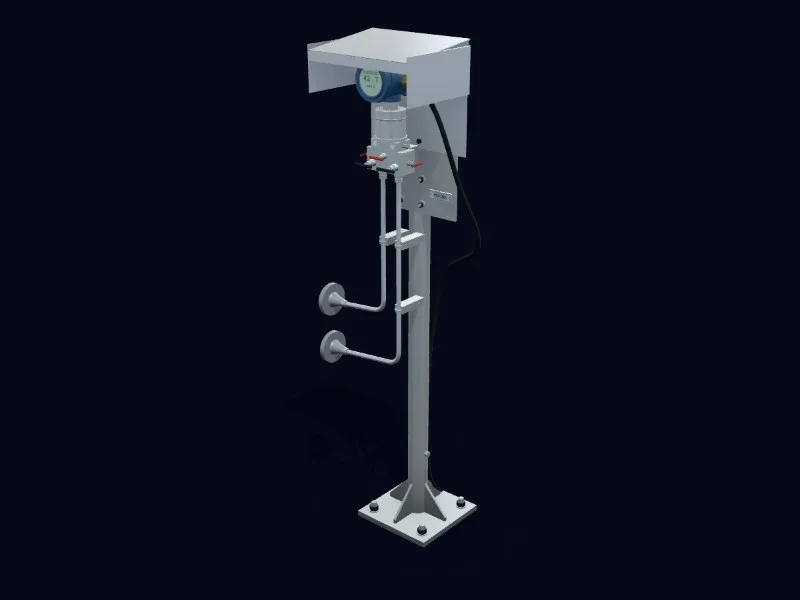

Differential pressure transmitter
IEC 60079-1, IEC 61518

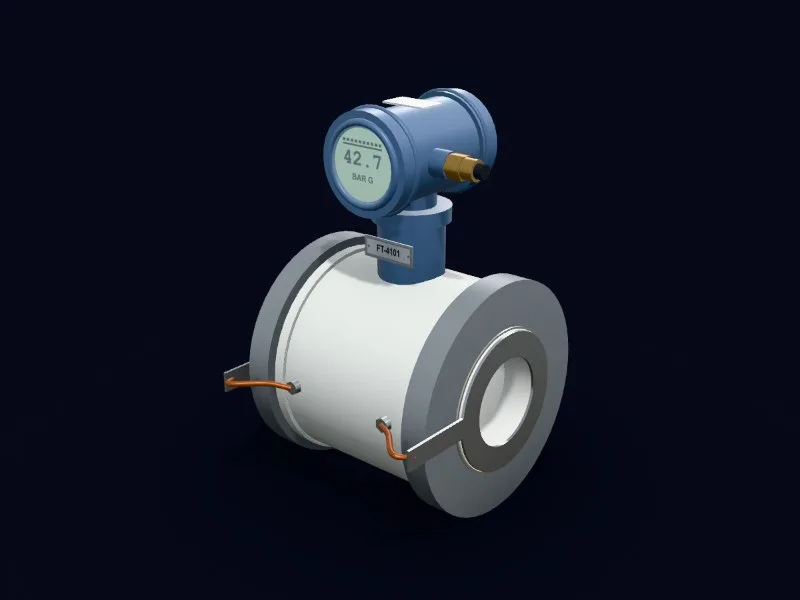

Electromagnetic flowmeter
ISO 13359, ISO 6817

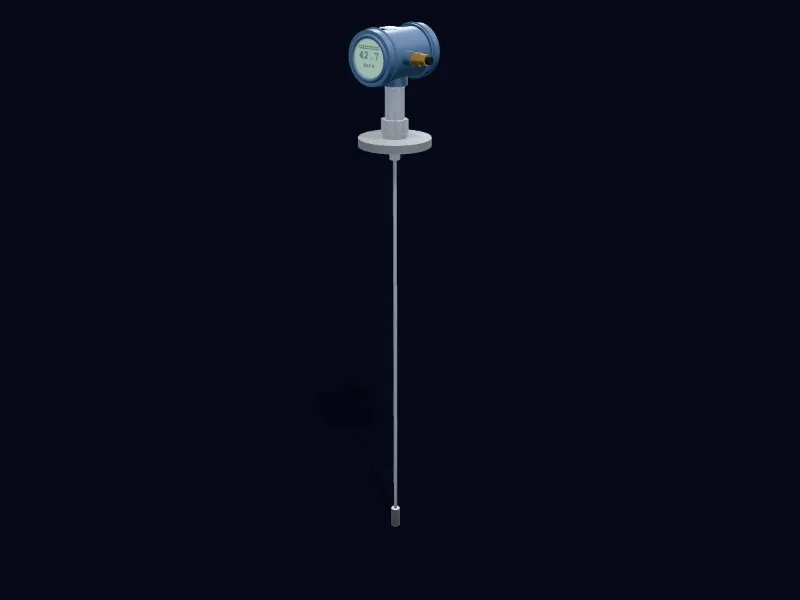

Guided wave radar level transmitter
IEC 62828, IEC 60079-1
Magnetic level gauge
IEC 62828, ASME B16.5

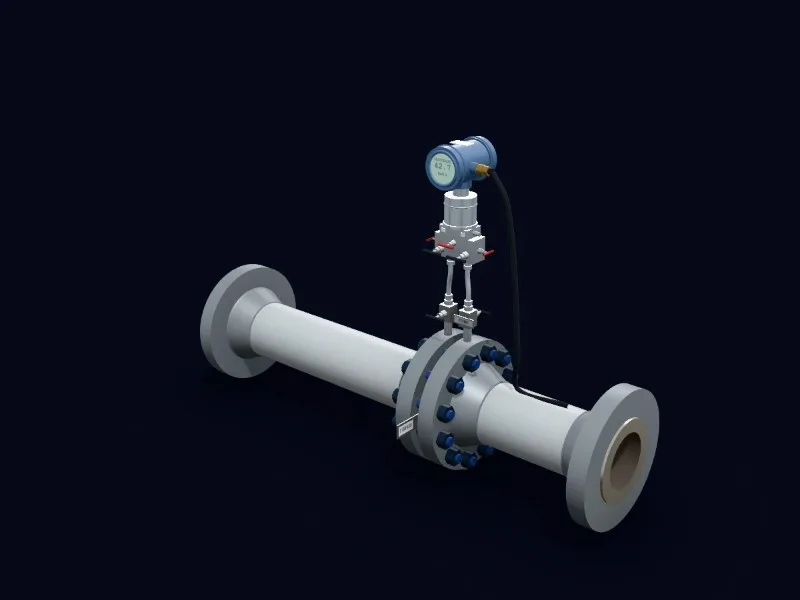

Orifice flowmeter
ISO 5167-2, ASME B16.36
Pressure gauge
EN 837-1, ASME B40.100
Pressure switch
IEC 60079-1, IEC 60947-5-1
Pressure transmitter
IEC 60079-1, IEC 61298
Temperature gauge
EN 13190, ASME B40.200

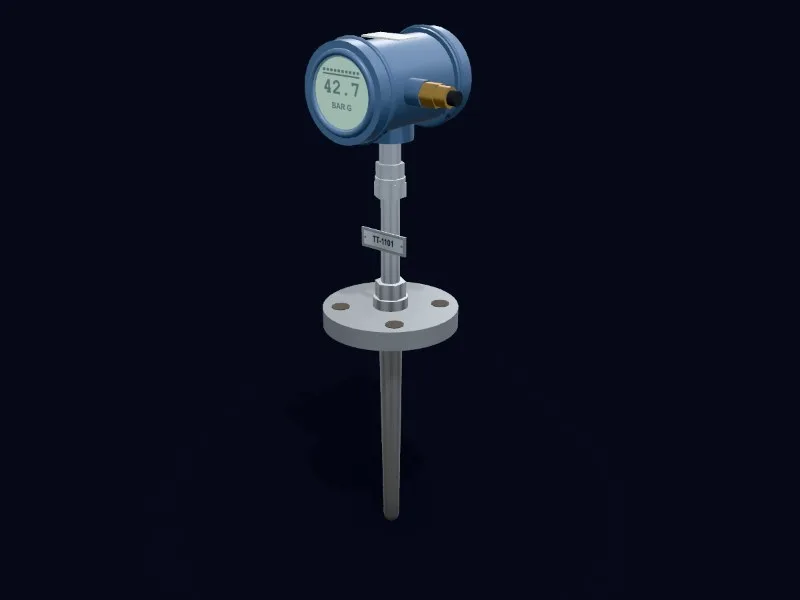

Temperature transmitter
ASME PTC 19.3 TW, IEC 60751

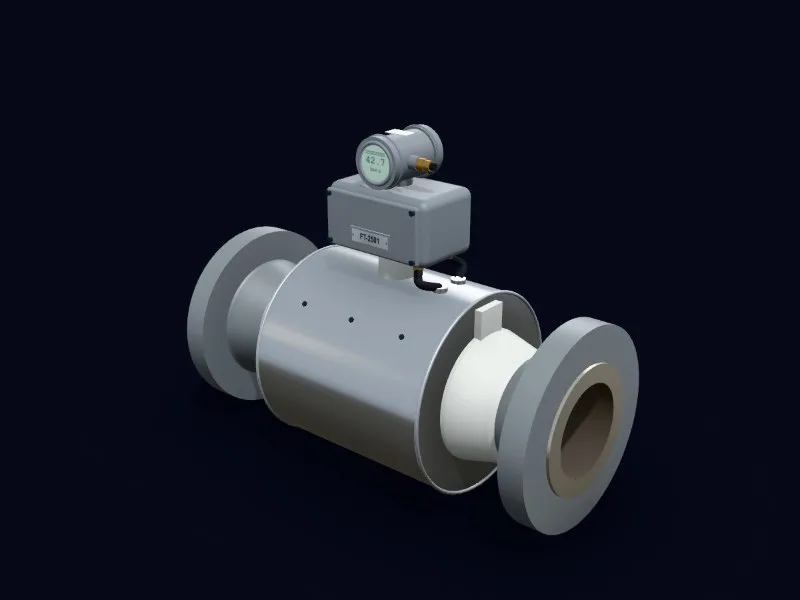

Ultrasonic flowmeter
ISO 17089-1, AGA Report 9

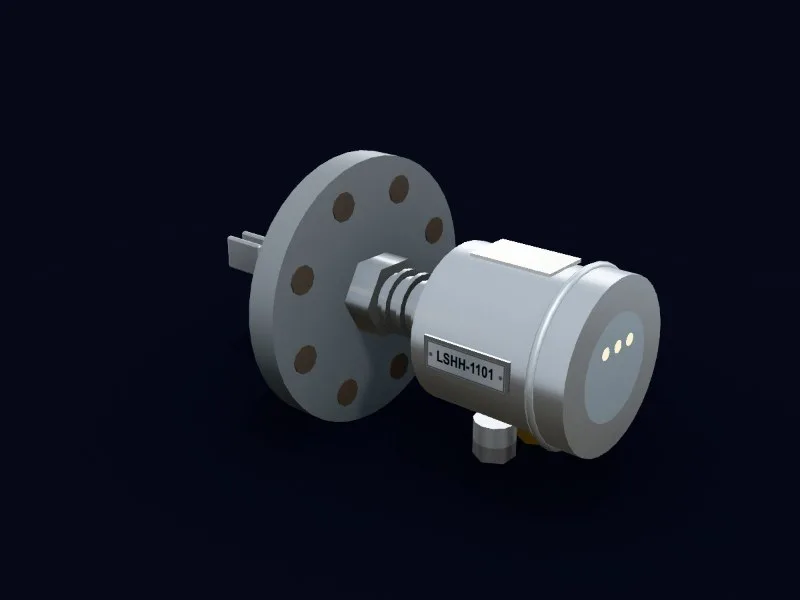

Vibrating fork level switch
IEC 62828, IEC 61508 (SIL)

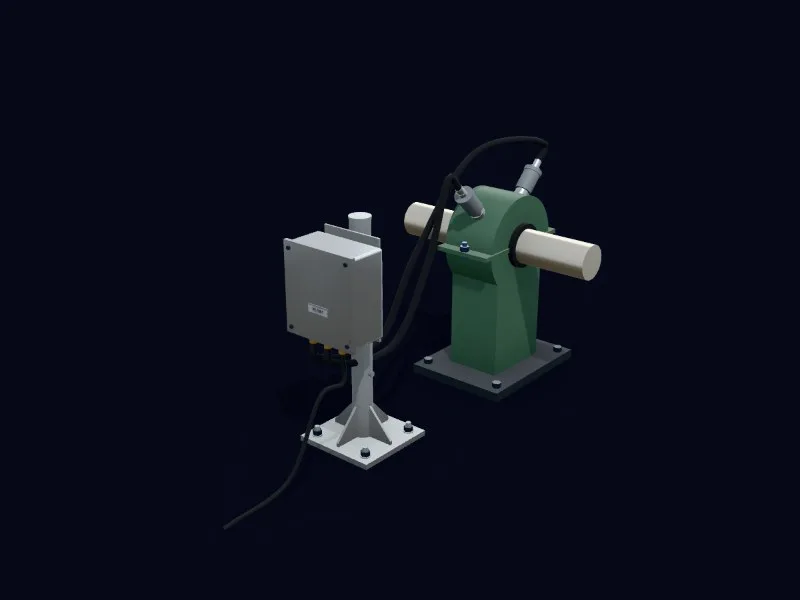

Vibration probes (API 670)
API 670, ISO 20816-1

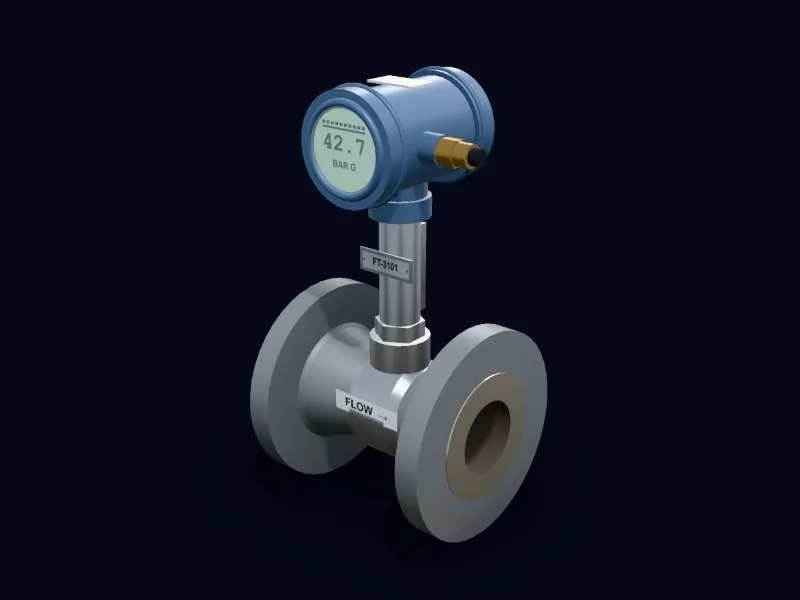

Vortex flowmeter
ISO 12764, ASME B16.5
Fire, gas & safety29
F&G detectors, call points, deluge, monitors, showers and lifesaving.
Alarm beacon and sounder
EN 54-23, EN 54-3
Aspirating smoke detector
EN 54-20, NFPA 72

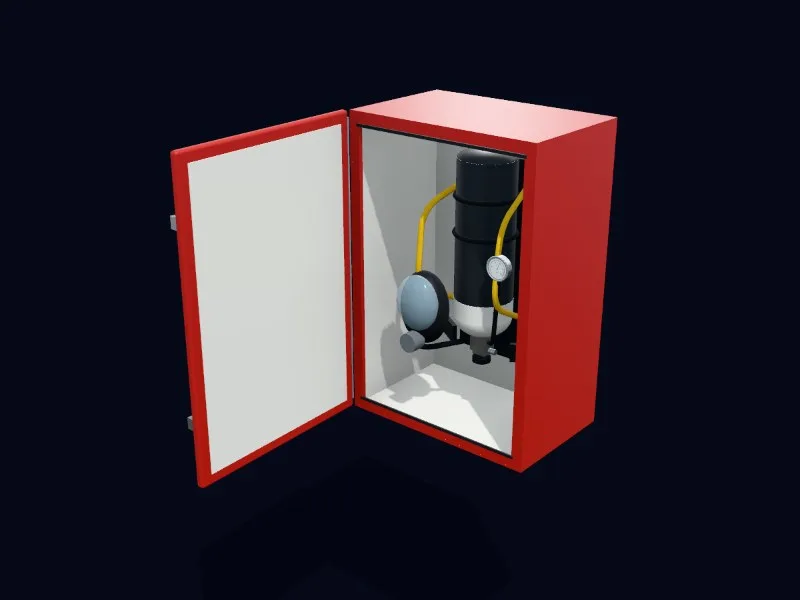

Breathing apparatus cabinet
EN 137, ISO 7010

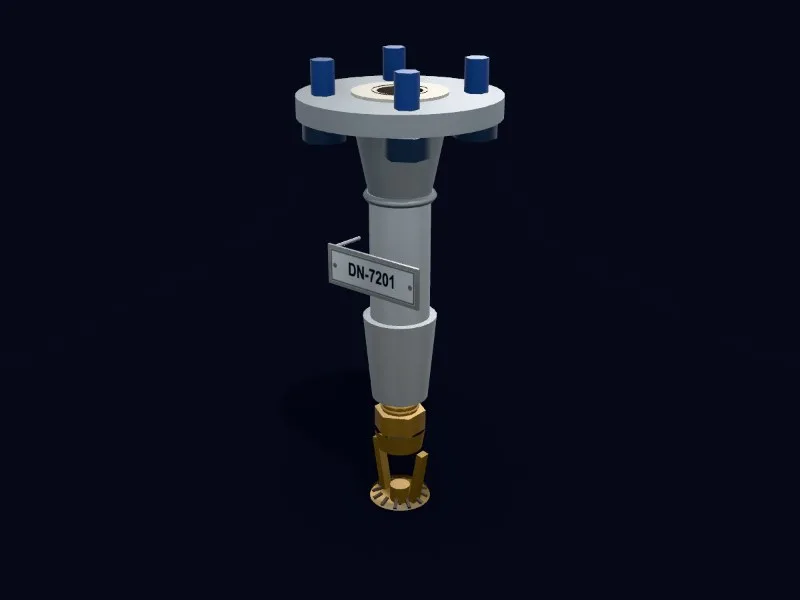

Deluge nozzle / sprinkler head
NFPA 15, NFPA 13
Deluge valve skid
NFPA 15, EN 12259-9

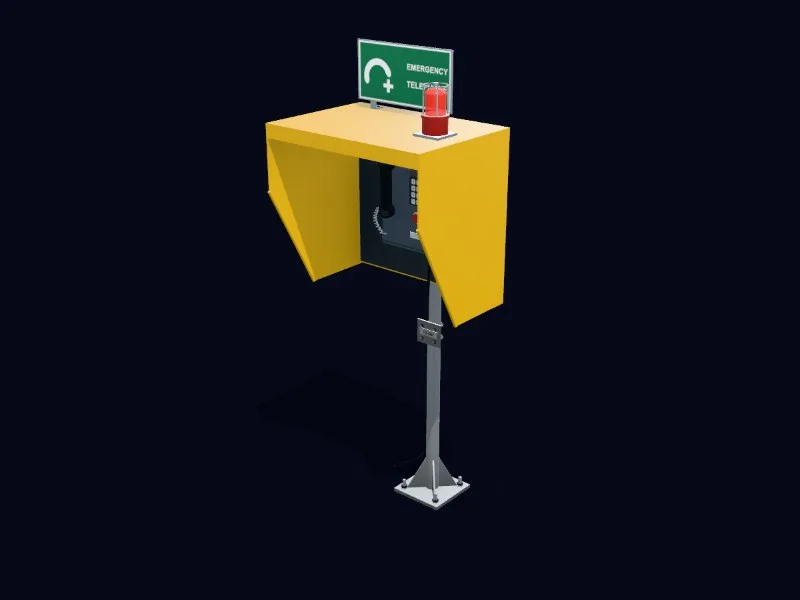

Emergency telephone
IEC 60079-1, IEC 60079-0

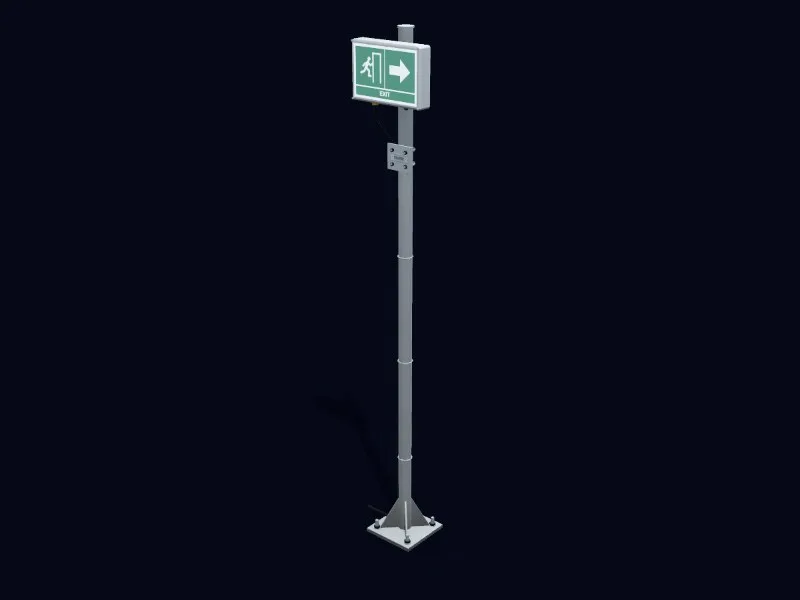

Escape route and muster sign
ISO 7010, ISO 3864-1
Ex emergency luminaire
IEC 60079-7, IEC 60598-2-22

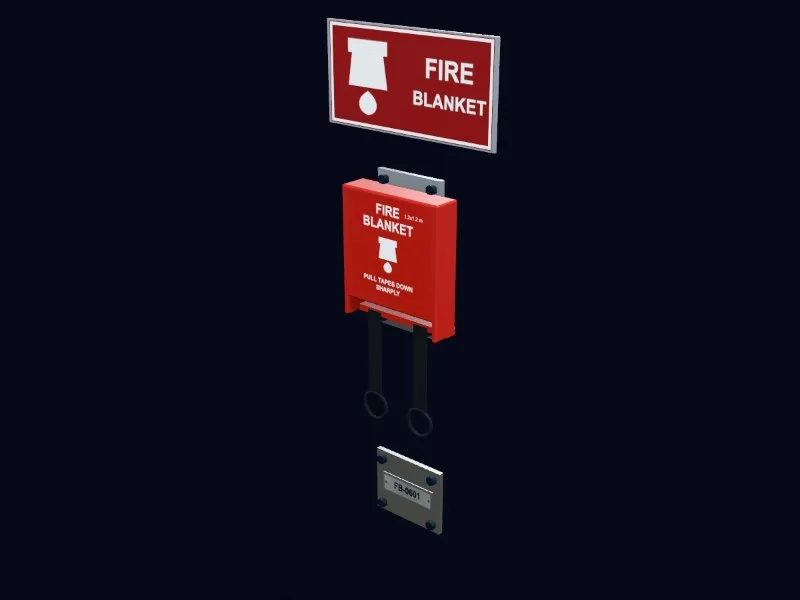

Fire blanket
EN 1869, BS 7944

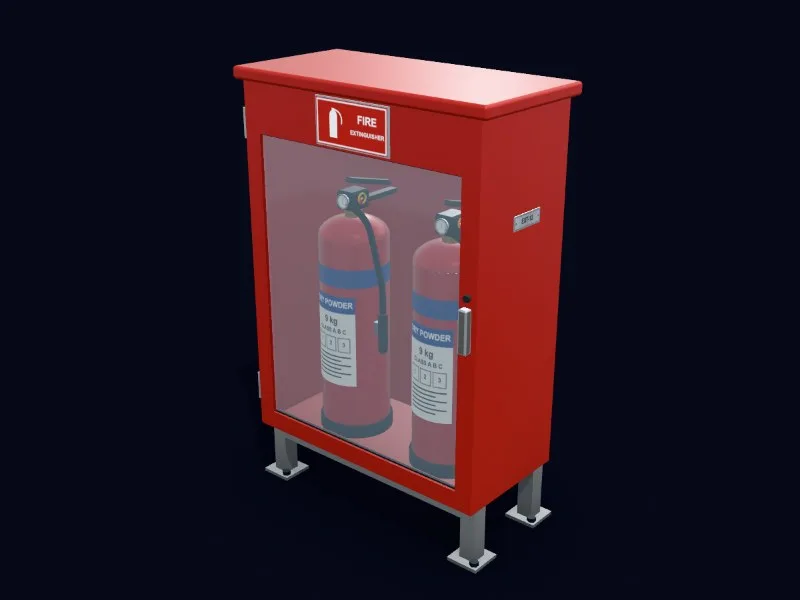

Fire extinguishers
EN 3-7, EN 1866-1

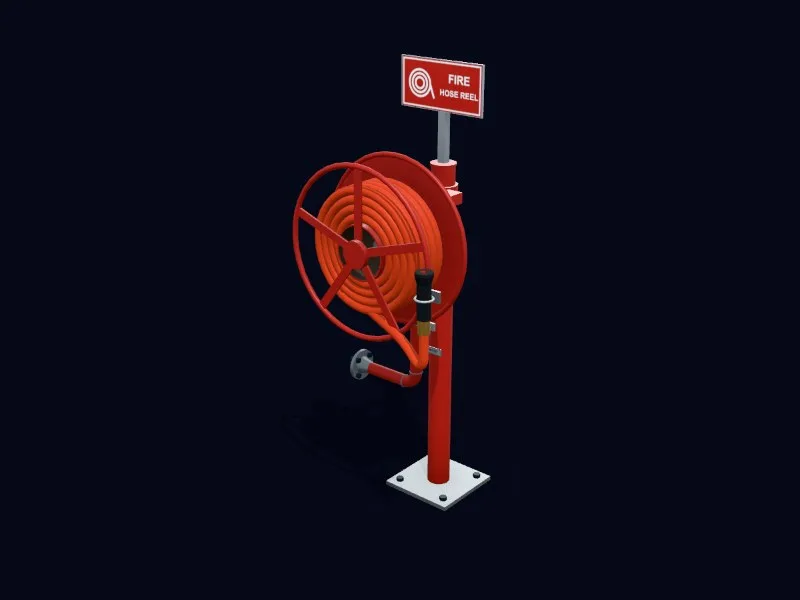

Fire hose reel
EN 671-1, ISO 7010

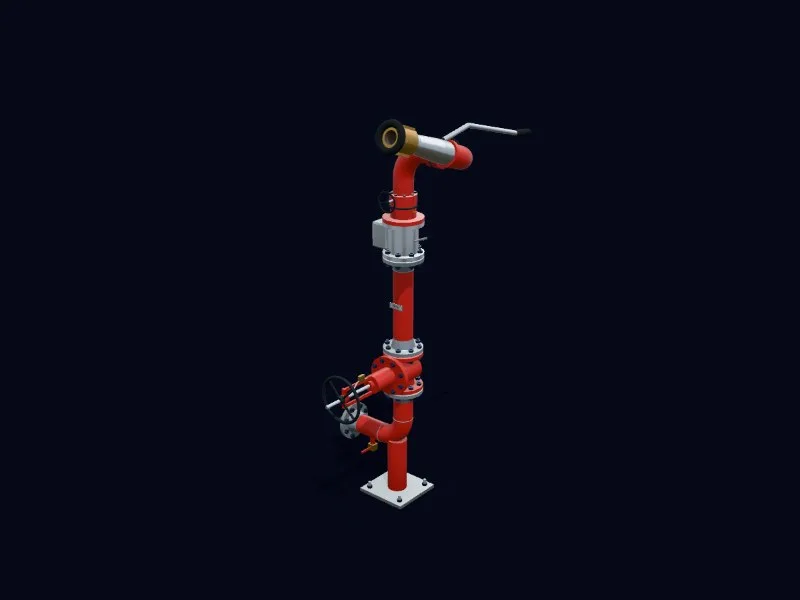

Fire monitor
EN 15767, NFPA 15

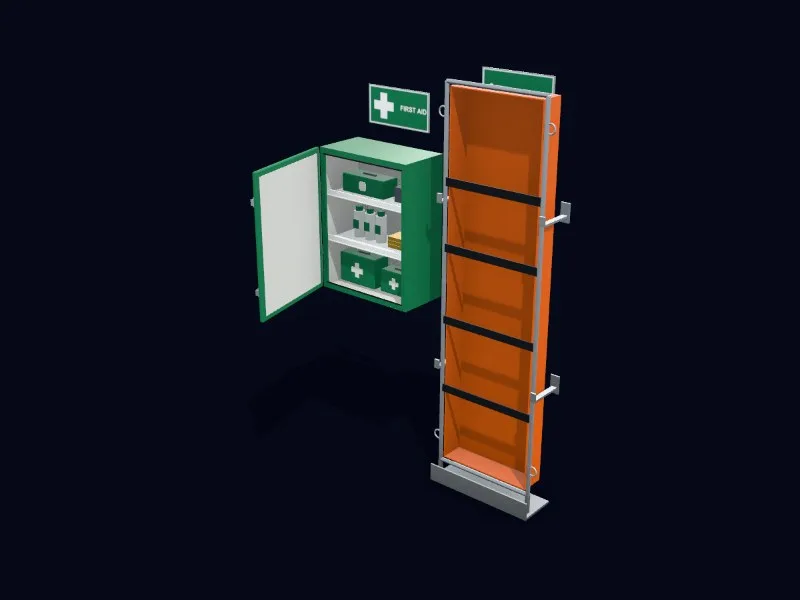

First-aid station
ISO 7010, ISO 3864-1
Heat detector
EN 54-5, IEC 60079-1

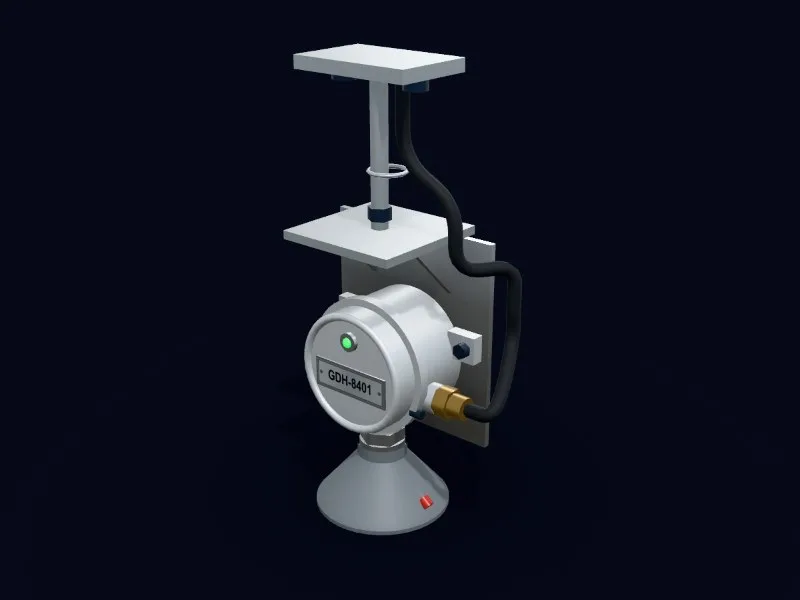

Hydrogen gas detector
IEC 60079-29-1, IEC 60079-29-2

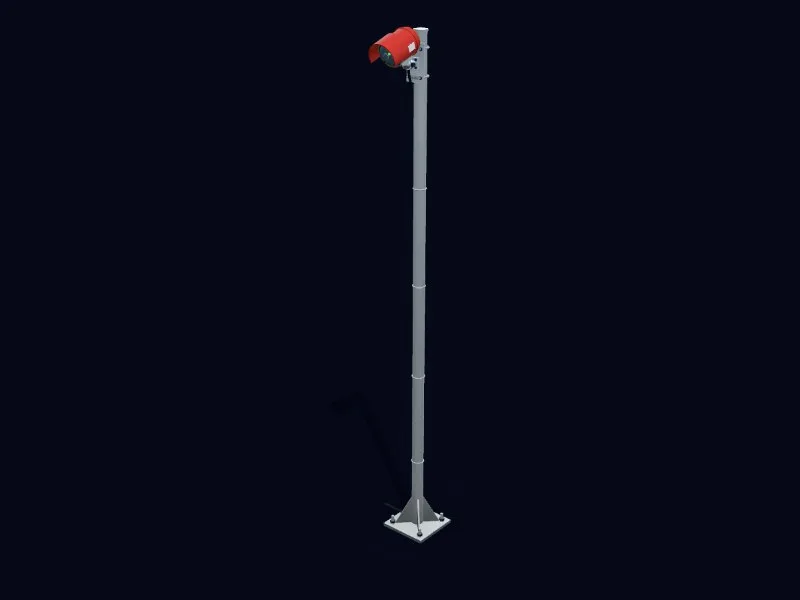

IR3 flame detector
EN 54-10, FM 3260

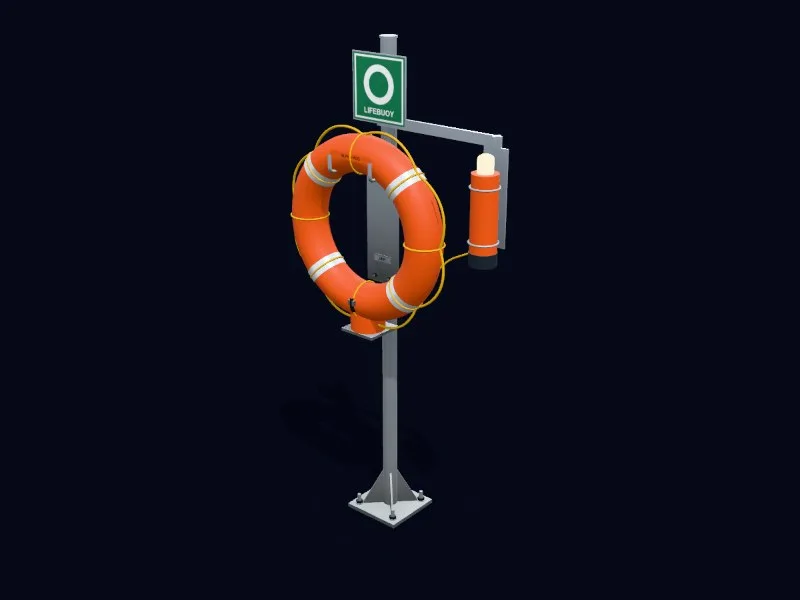

Lifebuoy station
SOLAS LSA Code 2.1, IMO Res. A.1116(30)

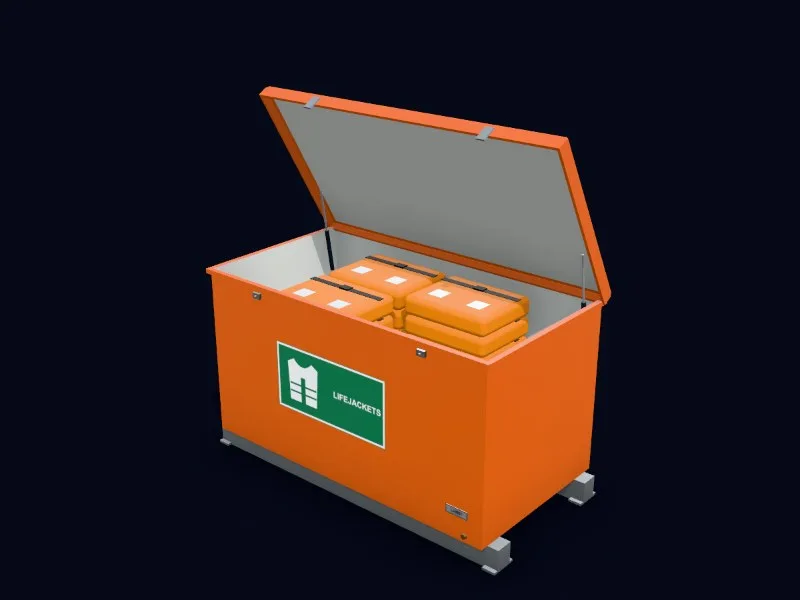

Lifejacket storage box
SOLAS LSA Code 2.2, IMO A.1116

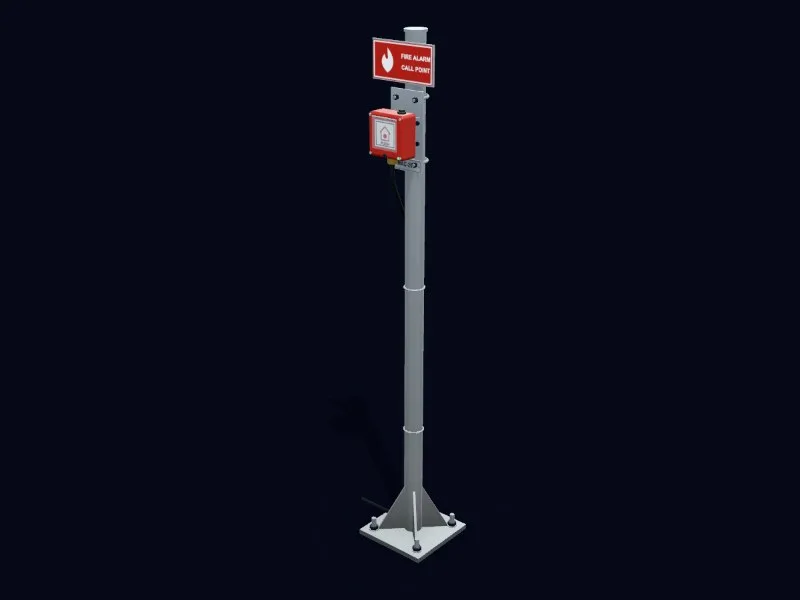

Manual call point
EN 54-11, ISO 7010

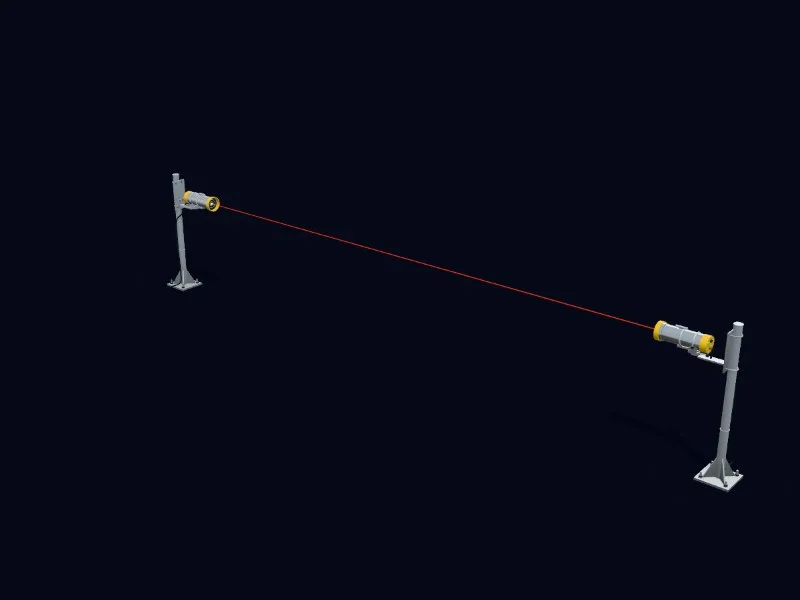

Open-path gas detector
IEC 60079-29-4, EN 60079-29-4
PA/GA horn loudspeaker
IEC 60079-1, IEC 60079-7

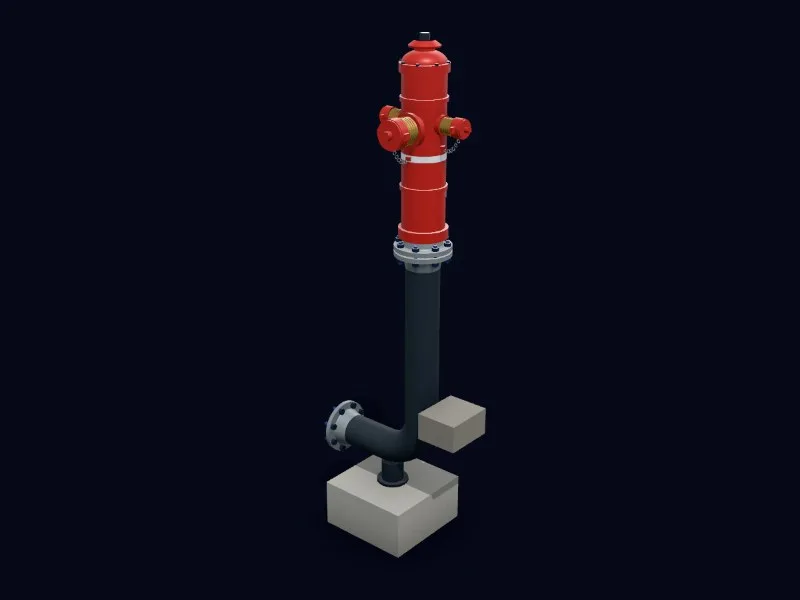

Pillar fire hydrant
AWWA C502, EN 14384

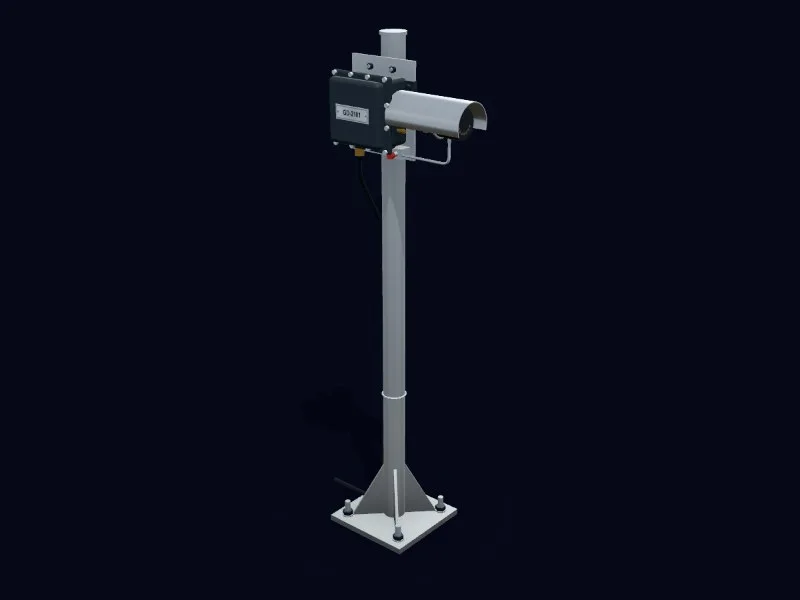

Point gas detector
IEC 60079-29-1, IEC 60079-29-2
Reflective beam smoke detector
EN 54-12, UL 268
Safety shower and eyewash
ANSI Z358.1, EN 15154-1

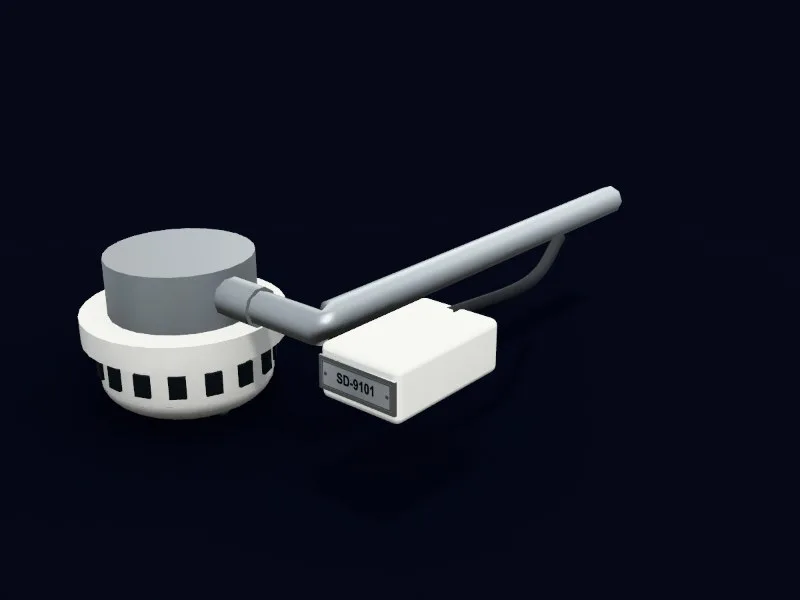

Smoke detector
EN 54-7

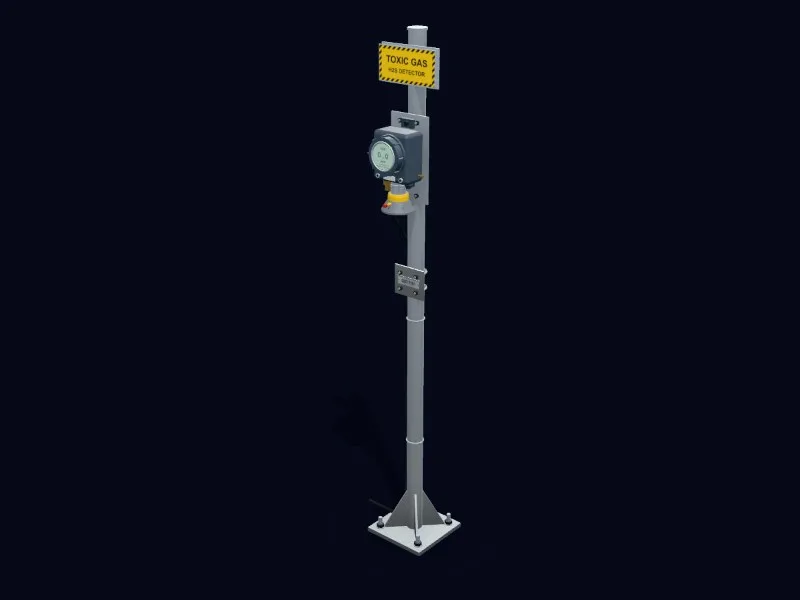

Toxic gas detector
IEC 60079-29-1, EN 45544

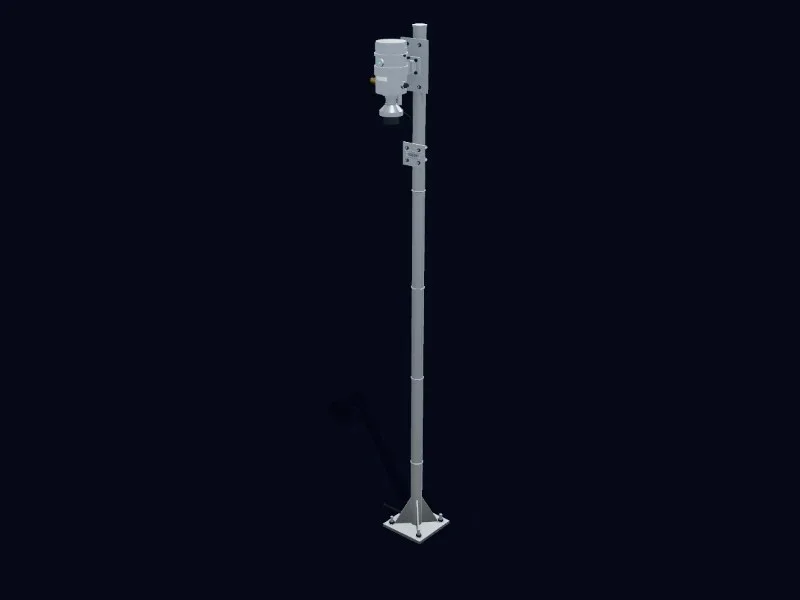

Ultrasonic gas leak detector
IEC 60079-1, IEC 60079-11
Windsock
ICAO Annex 14 Vol II, CAP 437
Structure & access15
Decks, beams, grating, stairs, ladders, racks, jackets and bridges.

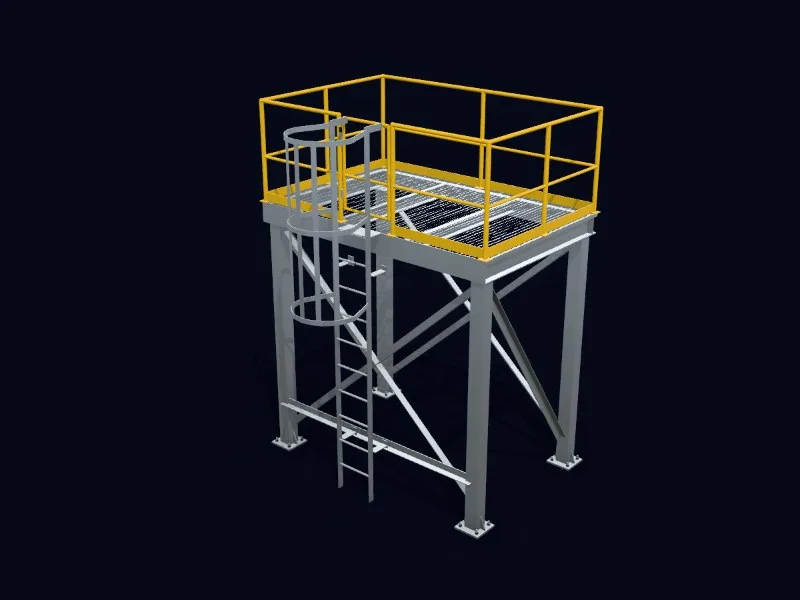

Access platform
ISO 14122-2, ISO 14122-3

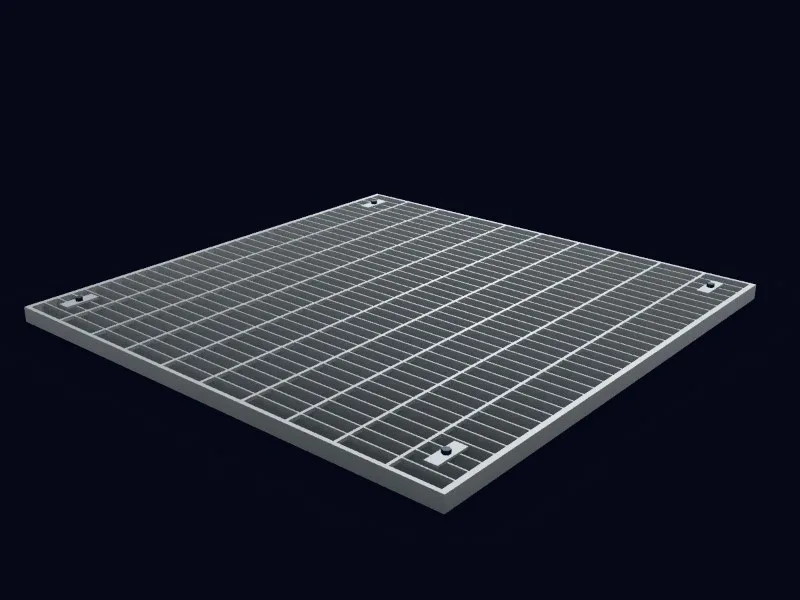

Bar grating panel
EN ISO 14122-2, BS 4592-1
Cable tray run
IEC 61537, NEMA VE 1

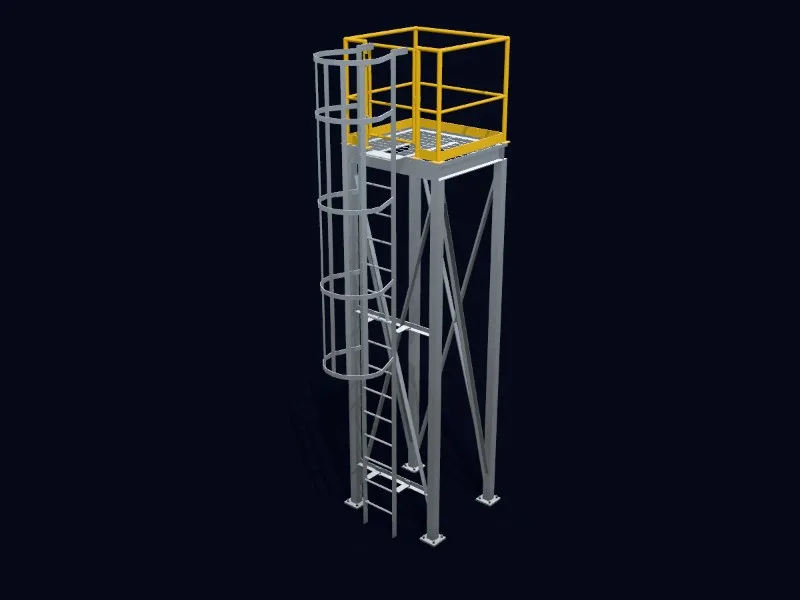

Caged ladder (ISO 14122-4)
ISO 14122-4, EN ISO 14122-1
Deck-hung caisson
ISO 19902, NORSOK P-001

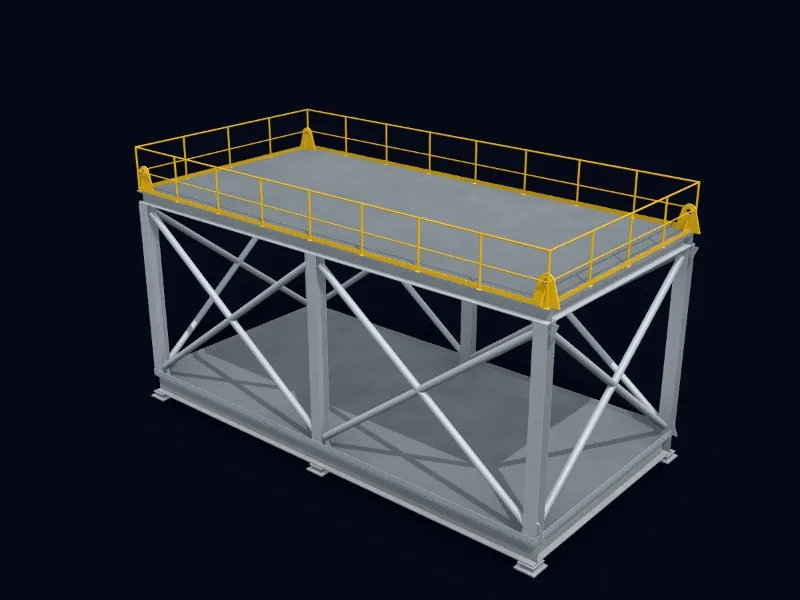

Equipment module frame
ISO 19901-6 (lifting), DNV-ST-N001

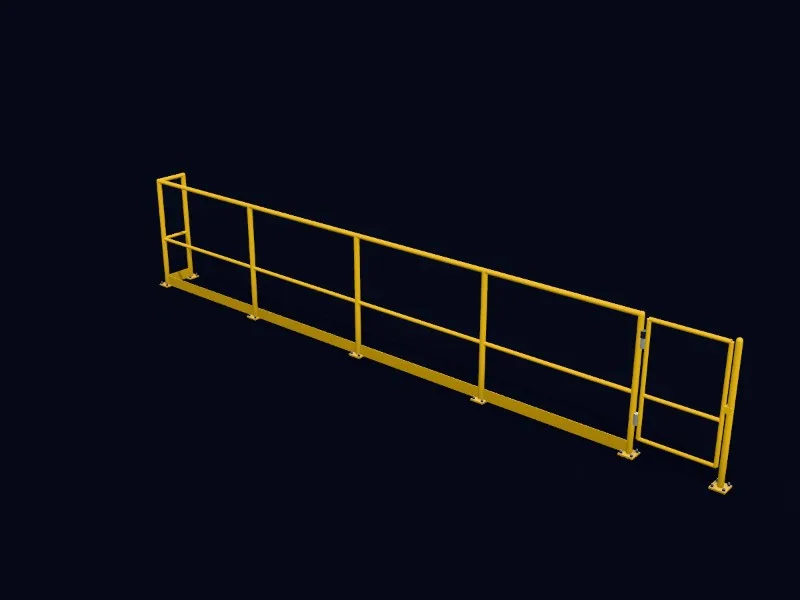

Handrail run (ISO 14122-3)
ISO 14122-3, EN ISO 14122-1

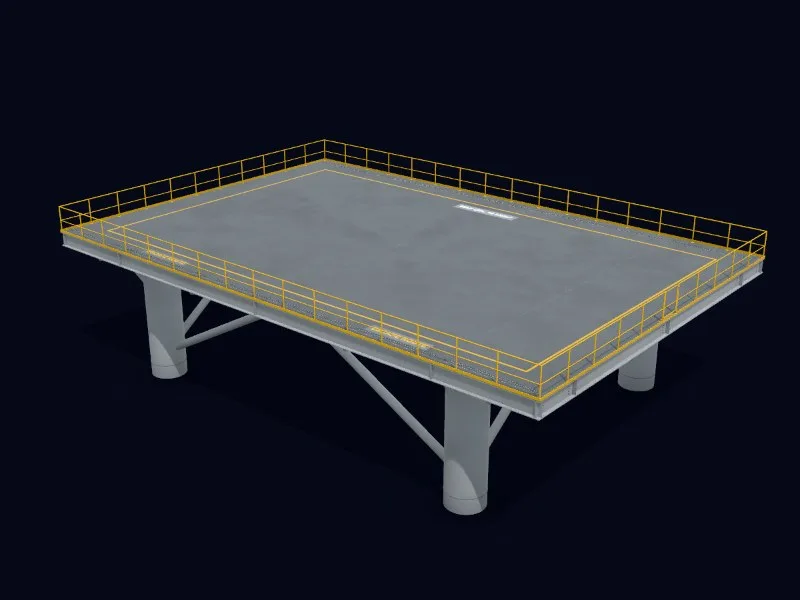

Offshore deck module
ISO 19902, ISO 14122-3

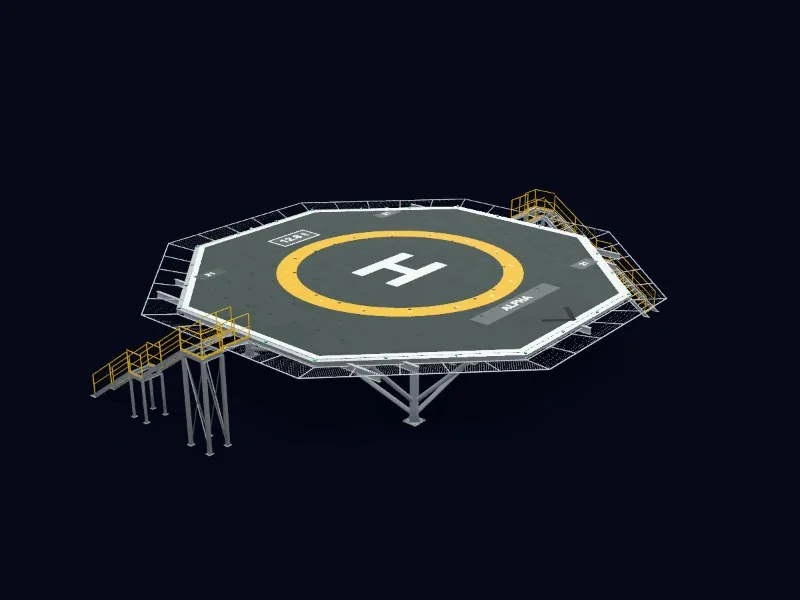

Offshore helideck (CAP 437)
CAP 437 (8th ed.), NORSOK C-004

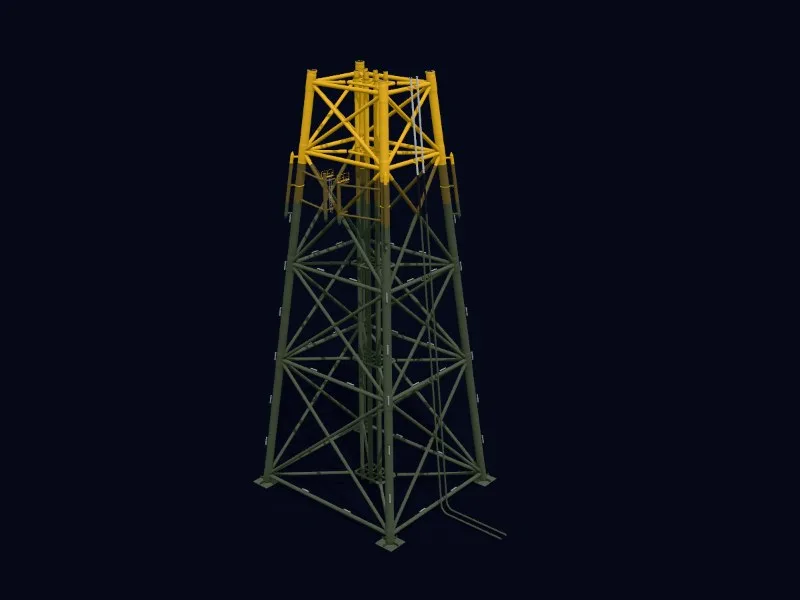

Offshore steel jacket
ISO 19902, API RP 2A-WSD
Pipe rack
EN 10365, ISO 14122-2/3/4
Platform link bridge
EN 1993-2, ISO 14122-2
Stair (ISO 14122-3)
ISO 14122-3, EN ISO 14122-1
Steel beam
EN 10365, AISC 360
Steel column
EN 10365, EN 10210
Power & buildings11
Transformers, switchgear, E-houses, panels, lighting and cable tray.

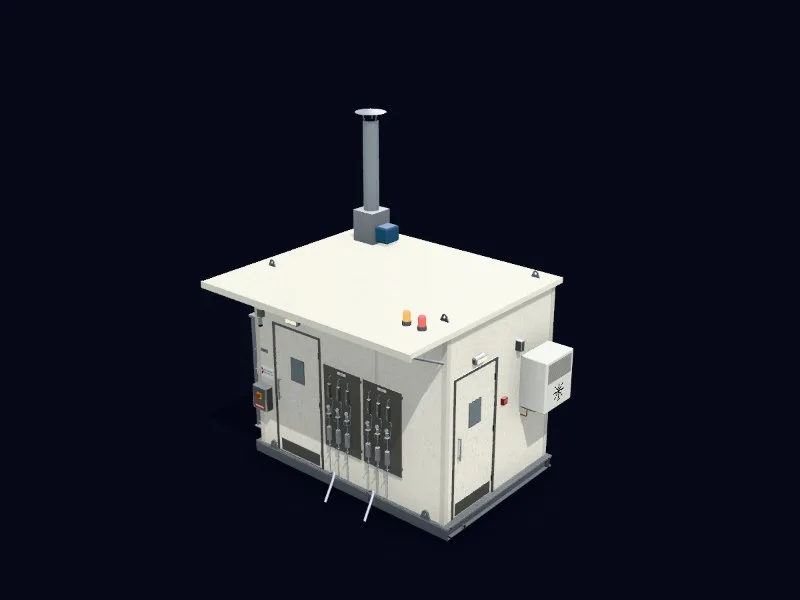

Analyser shelter (GRP)
IEC 61285, EEMUA 138
E-house / local equipment room
IEC 62271-202, IEC 61439

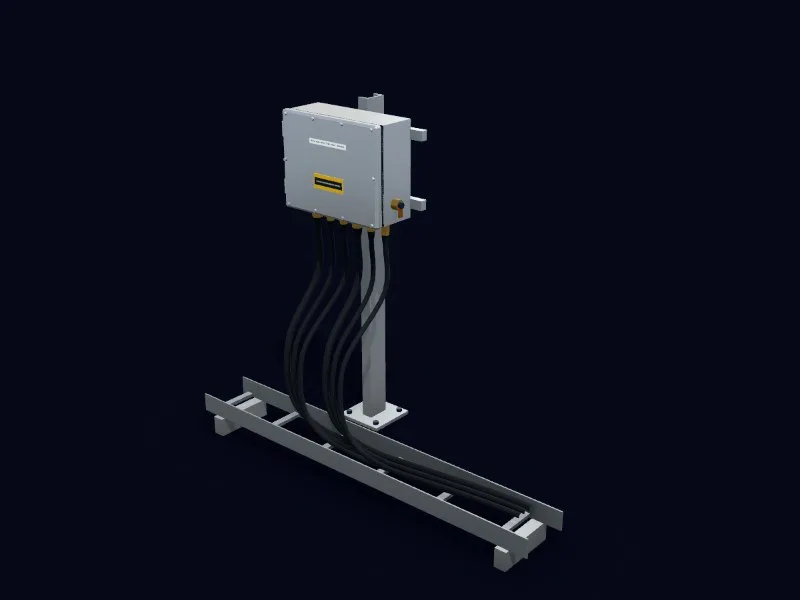

Junction box (Ex e)
IEC 60079-0 / -7, IEC 60079-14
Lighting mast / pole
EN 40-3, IEC 60598-2-5

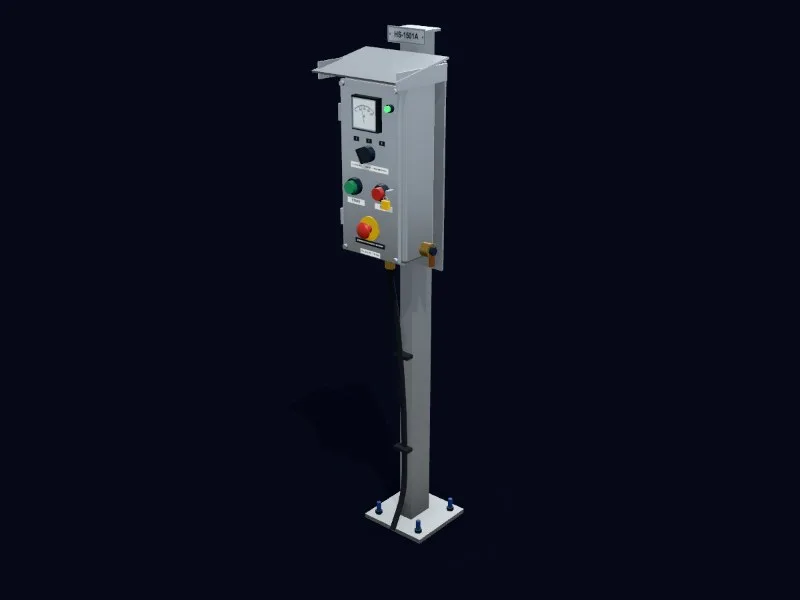

Local control station
IEC 60079-0 / -7, IEC 60947-5-1

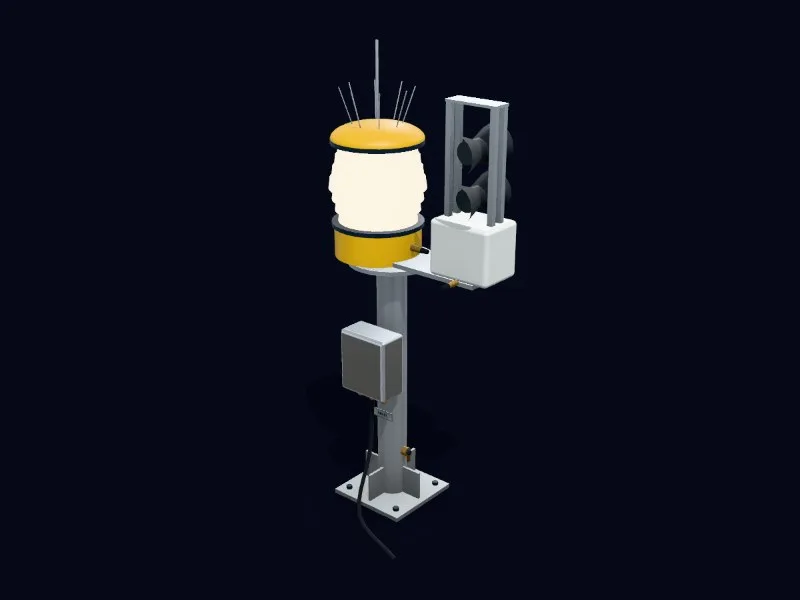

Navigation aid (lantern / fog signal)
IALA R0139 (O-139), IALA E-200
Neutral earthing resistor
IEEE 32, IEC 60529 (IP23)

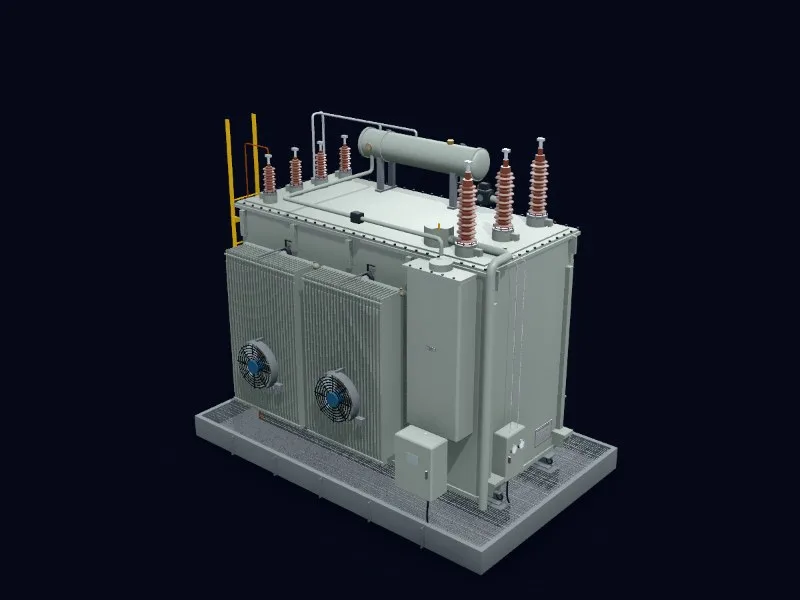

Power transformer (oil-immersed)
IEC 60076-1, IEC 60076-2
Switchgear / MCC line-up
IEC 62271-200, IEC 61439-1/2

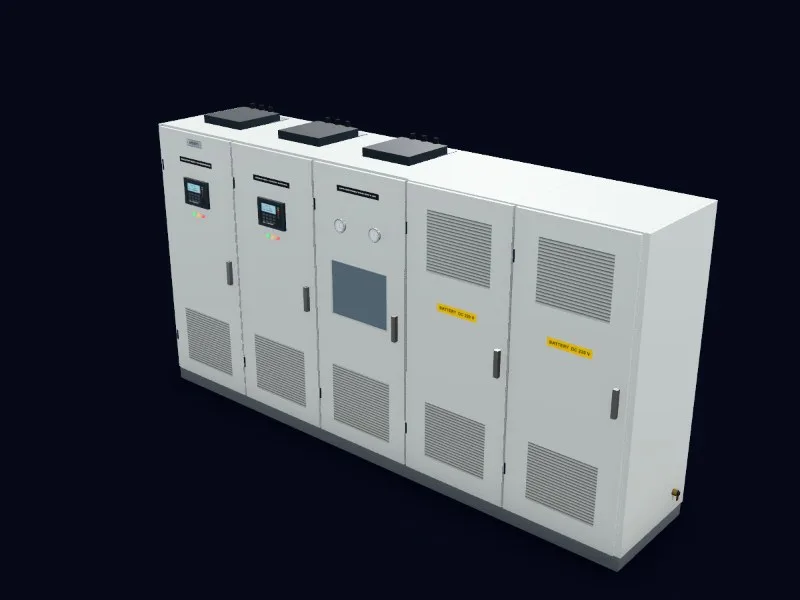

UPS and battery cabinets
IEC 62040-1, IEC 62040-3

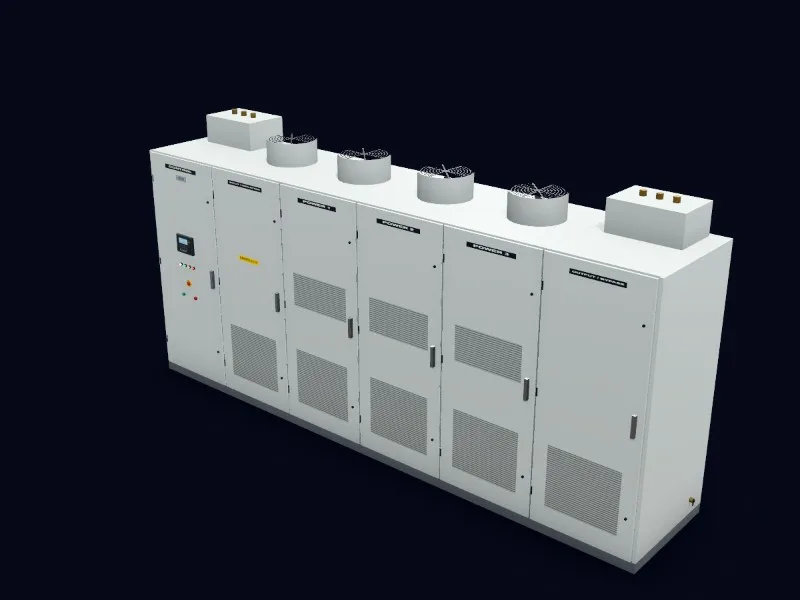

Variable frequency drive
IEC 61800-4, IEC 61800-5-1
Control room & interiors11
CCR consoles, video walls, screens, doors, windows, rooms, cabinets and CCTV.

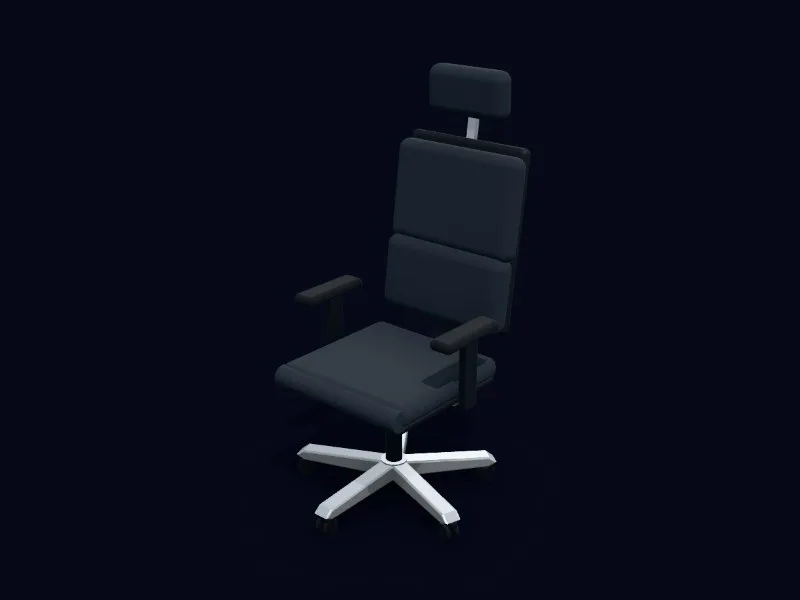

24/7 operator chair
EN 1335, BS 5459-2 (24-hour use)

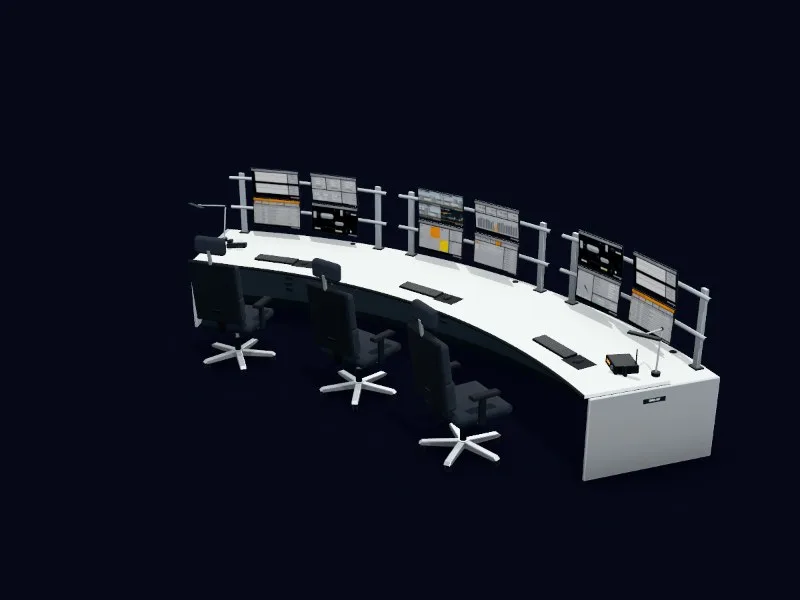

Control room operator console
ISO 11064, EN 527-1

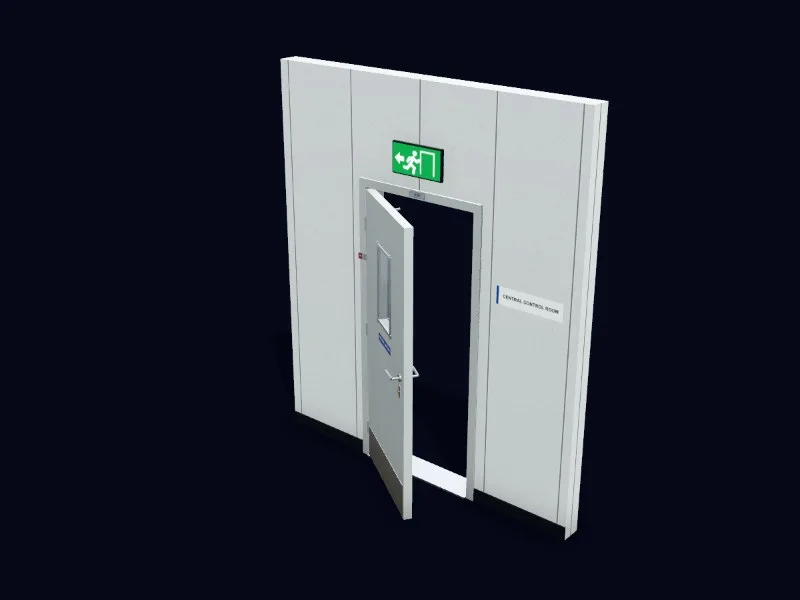

Door set (fire, blast, sliding, roller shutter)
IMO FTP Code (A60 / H120), ISO 7010 E001

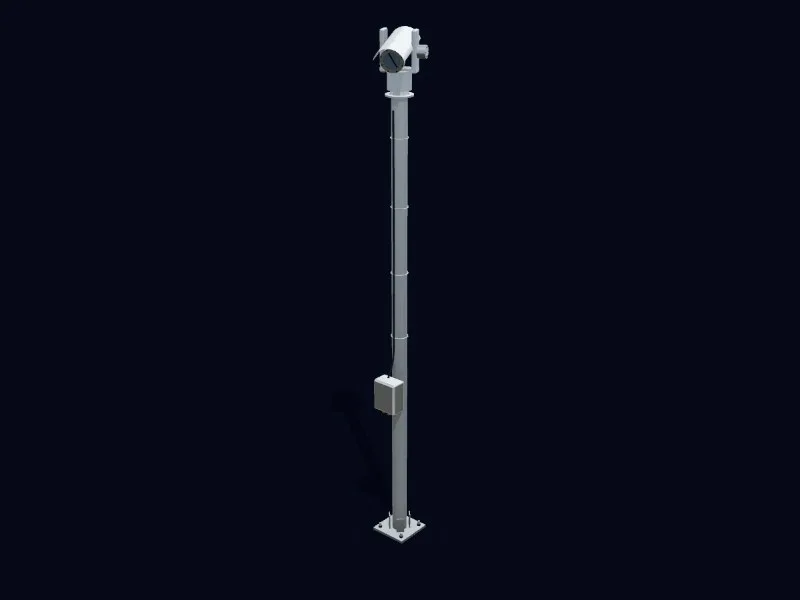

Ex d CCTV camera (fixed / PTZ)
IEC 60079-0 / -1 (Ex d), ATEX 2014/34/EU

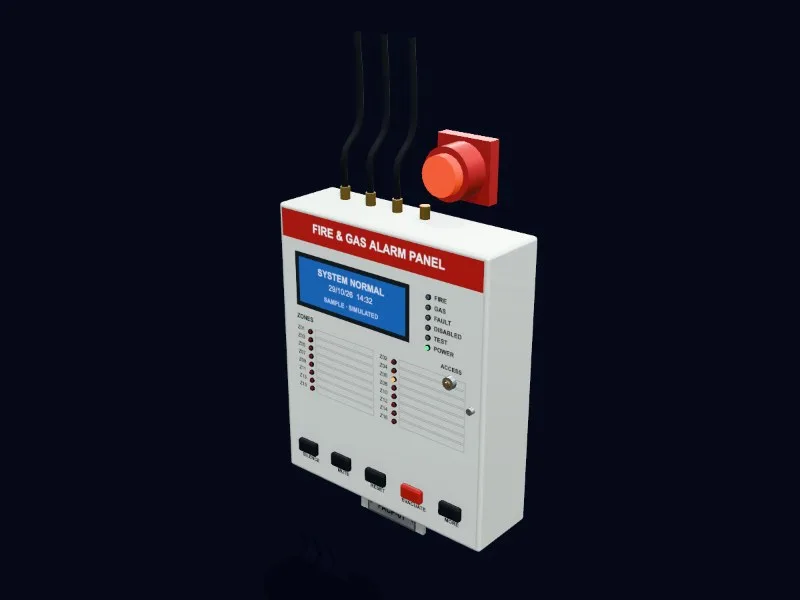

Fire & gas alarm panel / ESD mimic panel
EN 54-2 (control and indicating equipment), IEC 61511 (SIS)

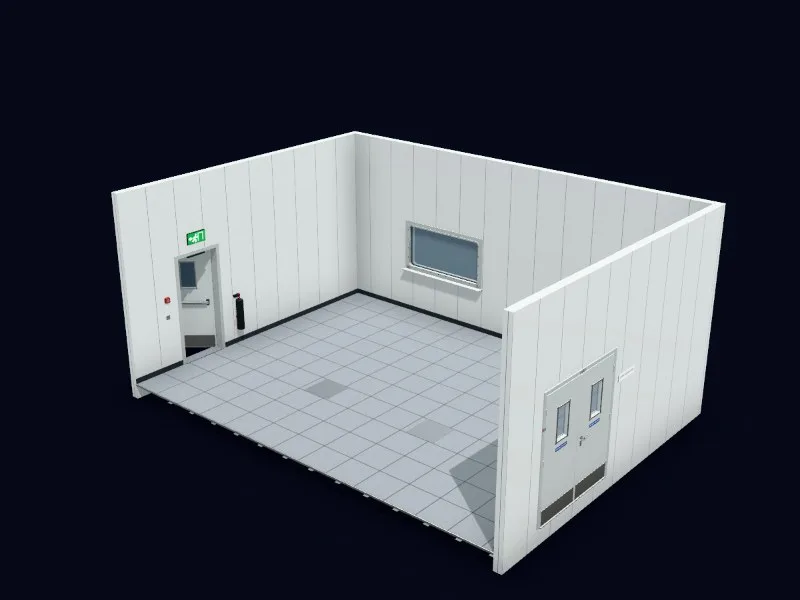

Room shell (control room, LER, office)
ISO 11064-3 (control room layout), EN 12825 (raised access floors)
Supervisor desk / meeting table
EN 527-1
System cabinet row (DCS / SIS / F&G / server)
IEC 61439, IEC 60297 (19" racks)

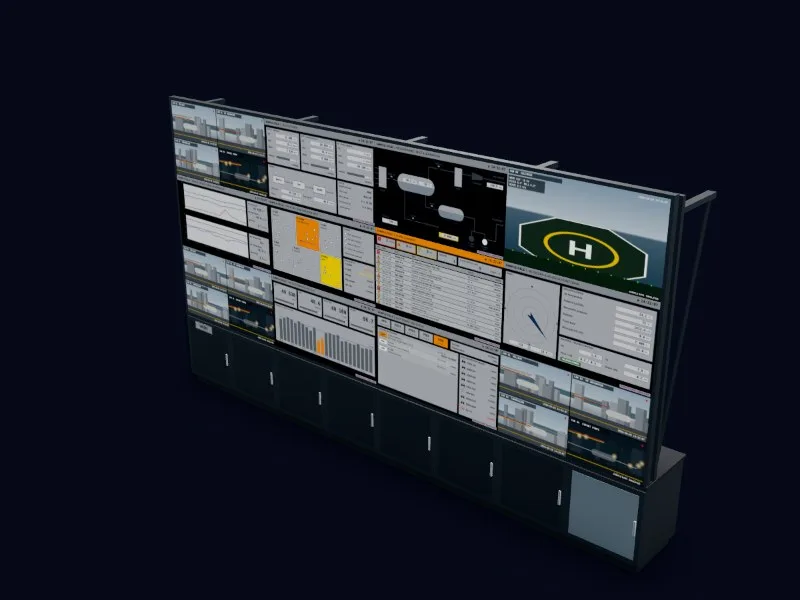

Video wall
ISO 11064, ISA-101 (screen style)
Wall / ceiling display or panel PC
VESA MIS-F, ISA-101 (screen style)

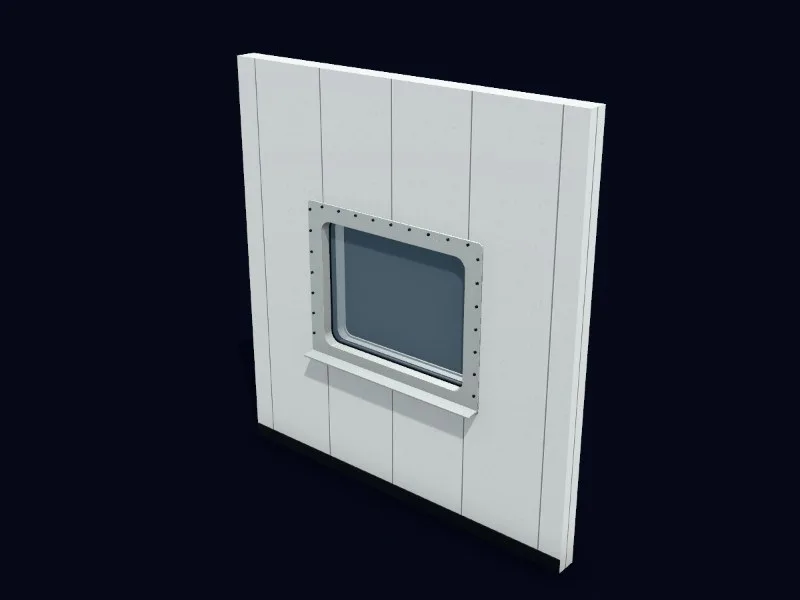

Window (A60 / H120 / blast)
IMO FTP Code (A60 / H120), ISO 3903 (ship windows)
Lifting & logistics8

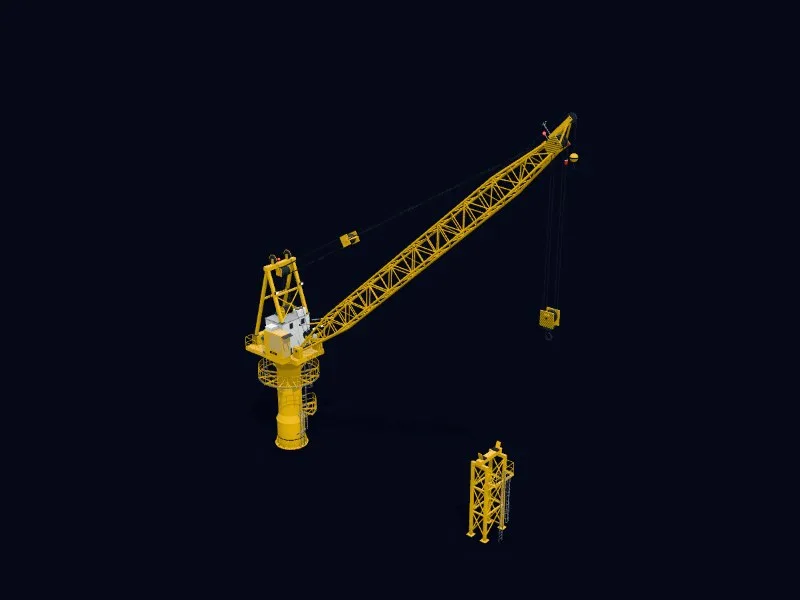

Pedestal cranes, monorails, davits, containers and cargo units.

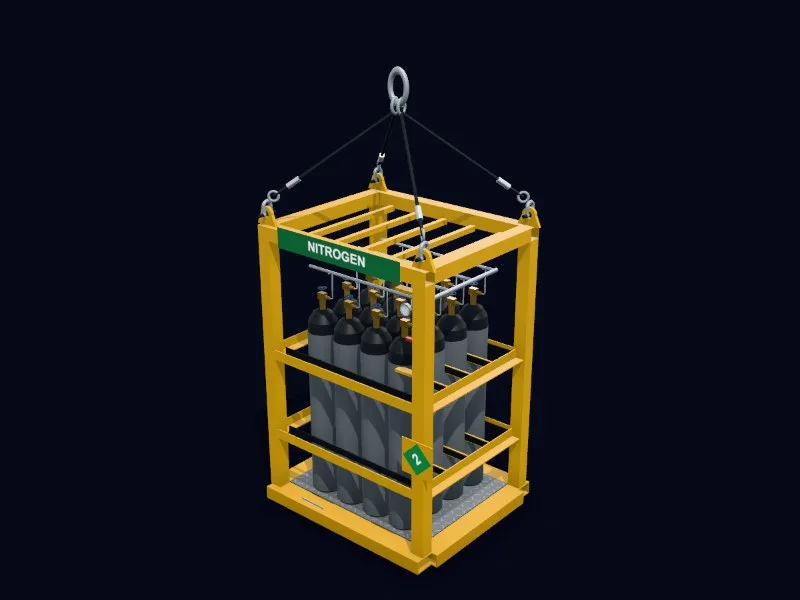

Gas cylinder quad (bundle)
DNV 2.7-1, EN 12079-1

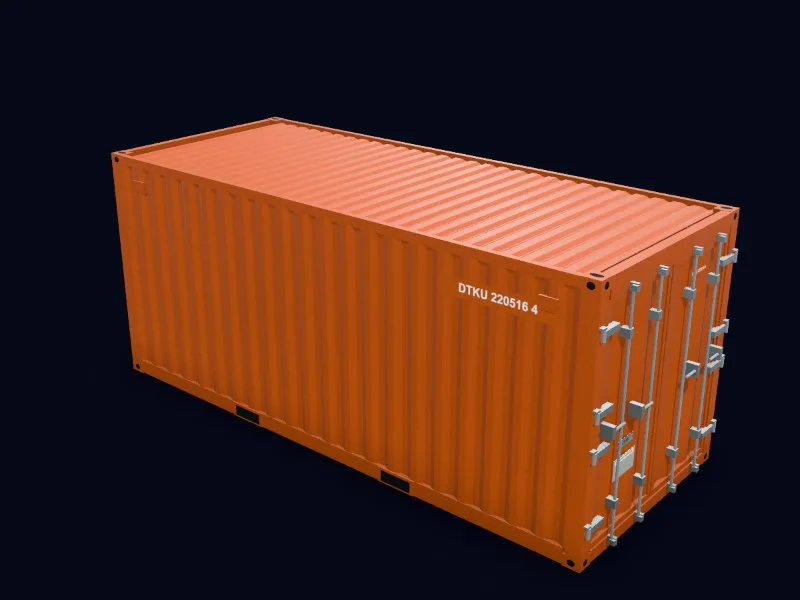

ISO shipping container
ISO 668, ISO 1161
Lifeboat (TEMPSC) and gravity davit
SOLAS III, IMO LSA Code IV/4.6 and VI/6.1
Monorail with chain hoist
EN 14492-2, FEM 9.511
Offshore cargo basket
DNV 2.7-1, EN 12079-1
Offshore chemical tote tank
DNV 2.7-1, EN 12079-1
Offshore pedestal crane
API Spec 2C, EN 13852-1
Pedestal davit crane (manual)
EN 13852-1, EN 13157
Packages & skids10
Chemical injection, metering, nitrogen, air, HPU and treatment skids.
Chemical injection skid
API 675, ASME B31.3
Compact piston prover
API MPMS Ch. 4.2, ASME B16.5
De-oiling hydrocyclone package
ASME BPVC VIII-1, ASME B16.5
Electrochlorination (hypochlorite) package
NORSOK M-001 (materials), ASME B16.5
Fiscal metering skid
API MPMS Ch. 4 / 5, ISO 17089-1
Hydraulic power unit (HPU)
ISO 4413, API 6A
Instrument air package
ISO 8573-1, ISO 1217
Membrane nitrogen generator
ISO 8573-1, ASME BPVC VIII-1
Multimedia filter package
ASME BPVC VIII-1, AWWA B100
TEG regeneration package
API 12GDU, ASME BPVC VIII-1
Onshore & terminals14
Loading arms, truck bays, pipeline valve stations, bunds, fences, boilers, substations and site buildings.
Gatehouse with boom barrier
EN 12453, EN 13241
HV circuit breaker (live tank SF6)
IEC 62271-100, IEC 62271-1
HV disconnector with earthing switch
IEC 62271-102, IEC 62271-1
Industrial building (portal frame)
EN 1993-1-1, EN 14509
Instrument transformer (CT / VT / CVT)
IEC 61869-2, IEC 61869-3
Marine loading arm
OCIMF Design and Construction Specification for Marine Loading Arms, EN 1474
Oily-water separator (CPI)
API 421, API 650 (steel variant)
Packaged fire-tube steam boiler
EN 12953, ASME Section I
Perimeter security fence
BS 1722-10, BS 1722-12
Pipeline block-valve station
ASME B31.8, API 6D
Substation strain gantry
IEC 61936-1, IEC 60383
Surge arrester (station class)
IEC 60099-4, IEC 60099-5
Tank bund wall
NFPA 30, API 2610
Truck loading bay (gantry)
API RP 1004, EN 13083
Environment2
Animated ocean and a day or night sky with matching lights, haze and reflections.
